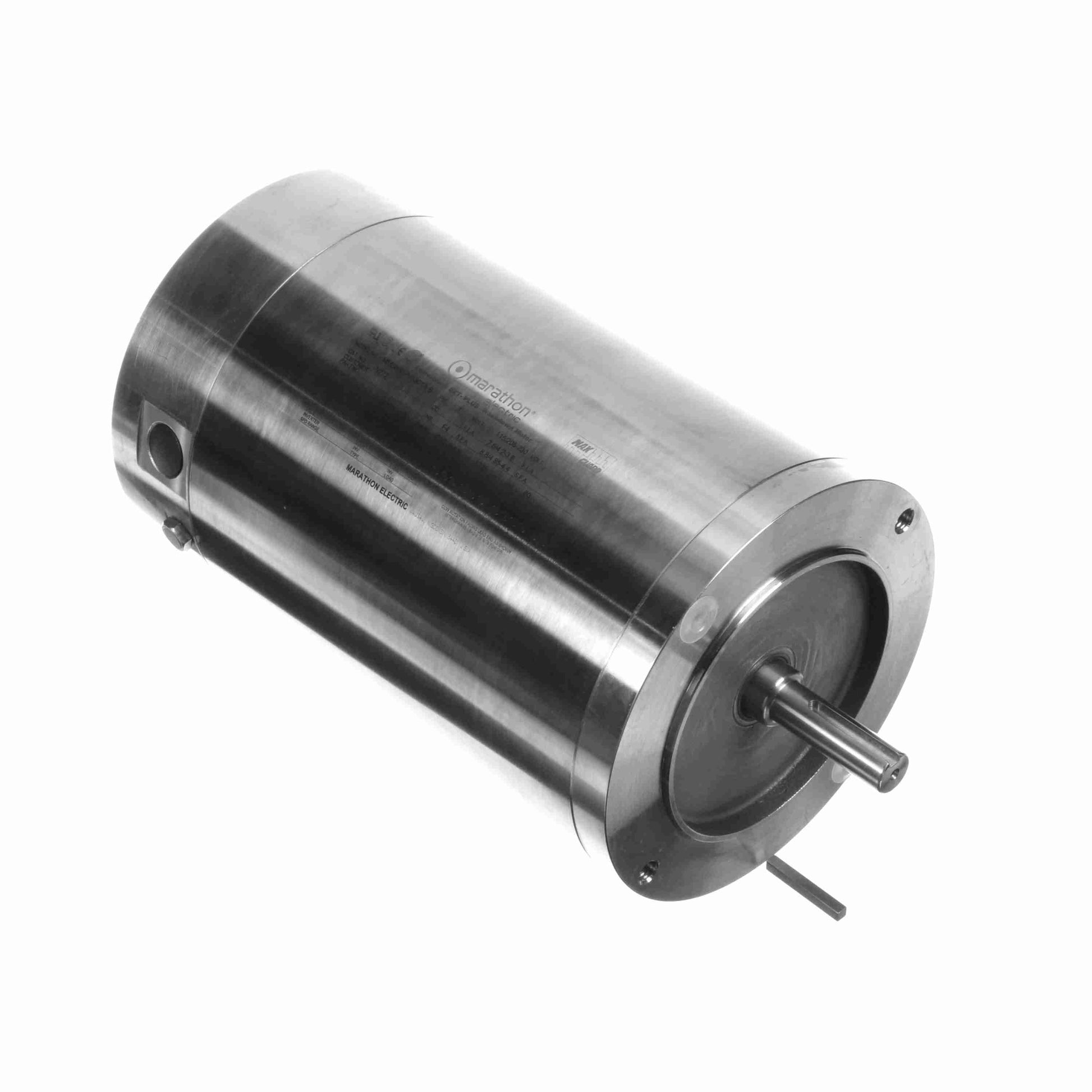

Marathon Electric N287, 1 1/2 Hp, 1800 Rpm, 145TC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 145TBWD5329.

N287, 1 1/2 Hp, 1800 Rpm, 145TC FR, 115/208-230 Vac, Single Phase, Totally Enclosed, C-Face Footed, Stainless/BISSC, 145TBWD5329.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:14.8/7.8-7.4 A
Speed:1740 rpm
Service Factor:1.15
Phase:1
Efficiency:80 %
Power Factor:82
Duty:Continous
Insulation Class:F
Design Code:L
KVA Code:J
Frame:145TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:14.87 in
Frame Length:9.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.12 in
Assembly/Box Mounting:F1 ONLY
