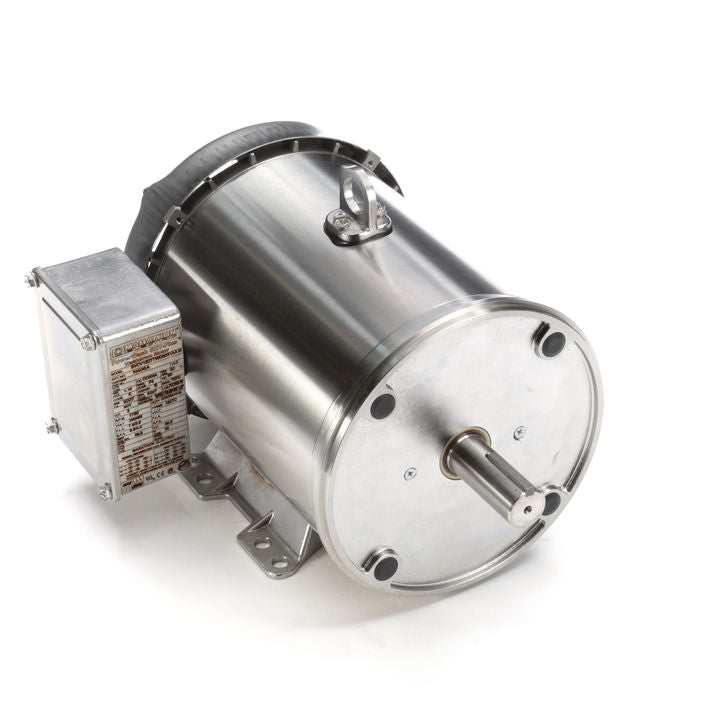

Marathon Electric N294A, 2Hp, 1800 Rpm, 56HC FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Stainless/BISSC, EPAct Motor, 56T17W99033.

N294A, 2Hp, 1800 Rpm, 56HC FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Stainless/BISSC, EPAct Motor, 56T17W99033.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:230/460 V
Current:5.8/2.9 A
Speed:1745 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:75.6
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:56HC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:6 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:NEMA 56
Overall Length:13.19 in
Frame Length:8.25 in
Shaft Diameter:0.625 in
Shaft Extension:2.07 in
Assembly/Box Mounting:F1 ONLY
