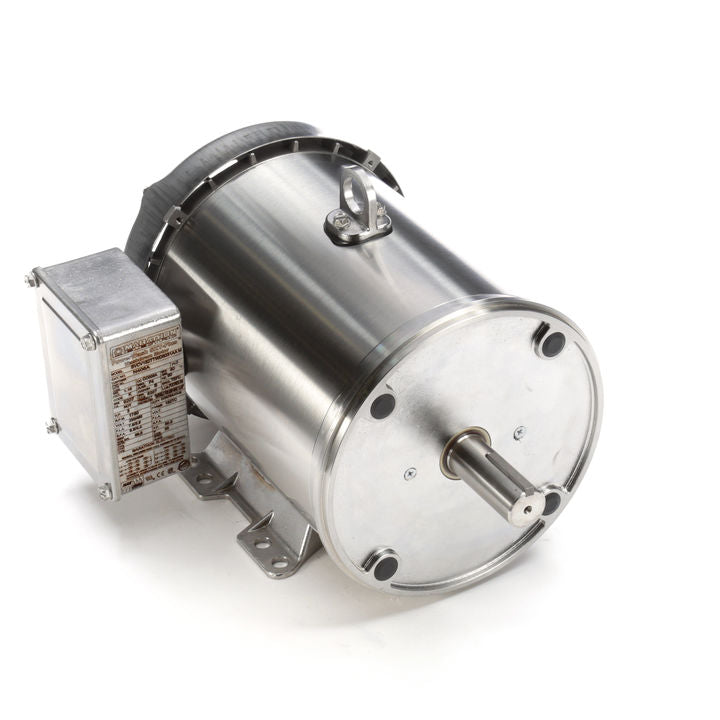

Marathon Electric N406A, 3 Hp, 1800 Rpm, 182TC FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Stainless/BISSC, Washdown Duty, EPAct Motor, 182TTWD6031

N406A, 3 Hp, 1800 Rpm, 182TC FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Stainless/BISSC, Washdown Duty, EPAct Motor, 182TTWD6031.

Engineering Data

Output HP :3 HP
Output KW :2.2 kW
Frequency :60 Hz
Voltage :230/460 V
Current :7.8/3.9 A
Speed :1760 RPM
Service Factor :1.15
Phase :3
Efficiency :89.5 %
Duty :Continous
Insulation Class :F
Design Code :B
KVA Code :K
Frame :182TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6207
Opp Drive End Bearing Size :6207
UL :Recognized
CSA :Y
CE :YIP Code :56
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated
Starting Method :Line Or Inverter
Poles :4
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Stainless Steel
Shaft Type :T
Overall Length :14.77 in
Frame Length :9.00 in
Shaft Diameter :1.125 in
Shaft Extension :2.88 in
Assembly/Box Mounting :F1 Only
UPC :722856030894
