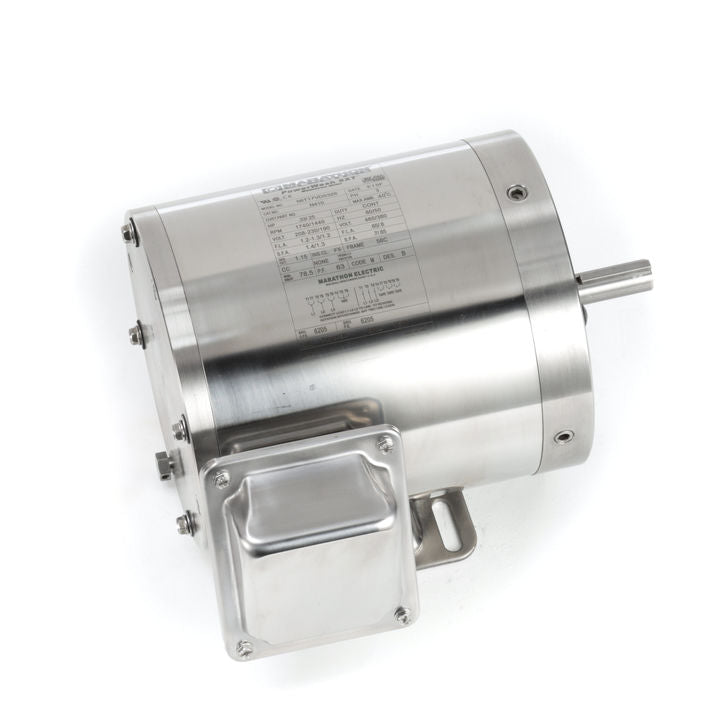

Marathon Electric N410, 1/3 HP, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, Washdown Duty, 56T17VD5326

Marathon Electric N410, 1/3 HP, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, Washdown Duty, 56T17VD5326

$1,045.00
$1,045.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,045.00 $992.75
Sale

N410, 1/3 HP, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, TEFC, C-Face Footed, Washdown Duty, 56T17VD5326

Engineering Data

Phase 3
Insulation Class F
Frame 56C
Duty CONTINUOUS
Enclosure TENV
Ambient 40
Mounting C-Face
Rigid NEMA Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA Code M
Drive End Bearing BALL IP Code 55
Opposite End Bearing BALL
Drive End Bearing Size 6205
Opposite End Bearing Size 6205
Weight 30 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection

Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:9.63 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:9.78 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 ONLY
