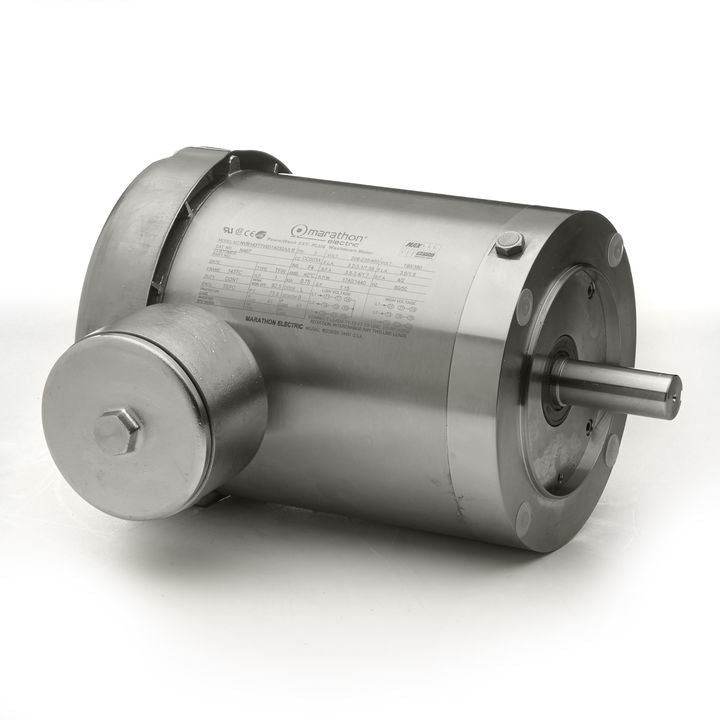

Marathon Electric N449A, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 184TTWD16032.

N449A, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 184TTWD16032.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:12.6/6.3 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:BKVA Code:G
Frame:184TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6207
UL:Recognized
CSA:YC
E:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:2.68 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:15.77 in
Frame Length:10.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.87 in
Assembly/Box Mounting:F1/F2 Capable
