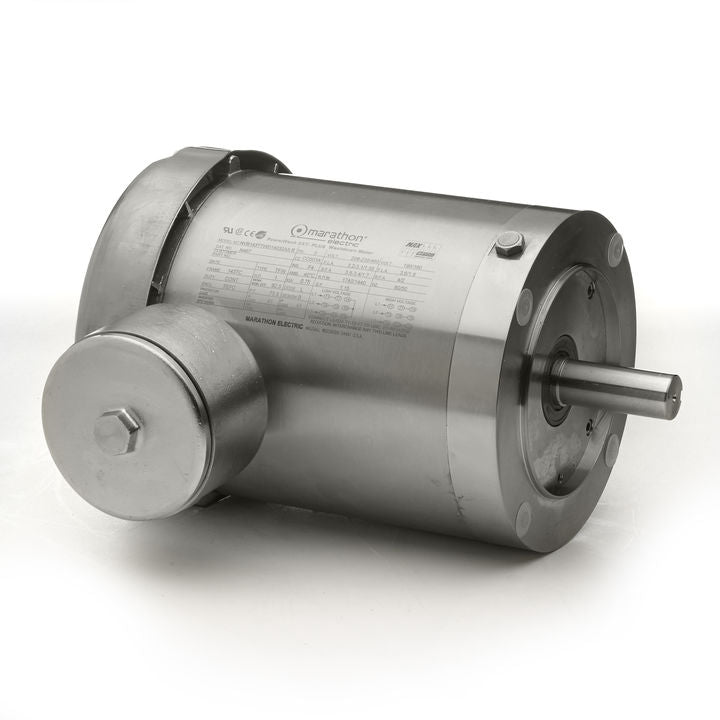

Marathon Electric N483A, 1 1/2 Hp, 3600 Rpm, 143TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 143TTWD16005.

N483A, 1 1/2 Hp, 3600 Rpm, 143TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 143TTWD16005.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.0/2.0 A
Speed:3490 rpm
Service Factor:1.15
Phase:3
Efficiency:84 %
Power Factor:82
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:M
Frame:143TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:8.5 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:12.00 in
Frame Length:7.00 in
Shaft Diameter:0.875 in
Shaft Extension:2.13 in
Assembly/Box Mounting:F1/F2 Capable
