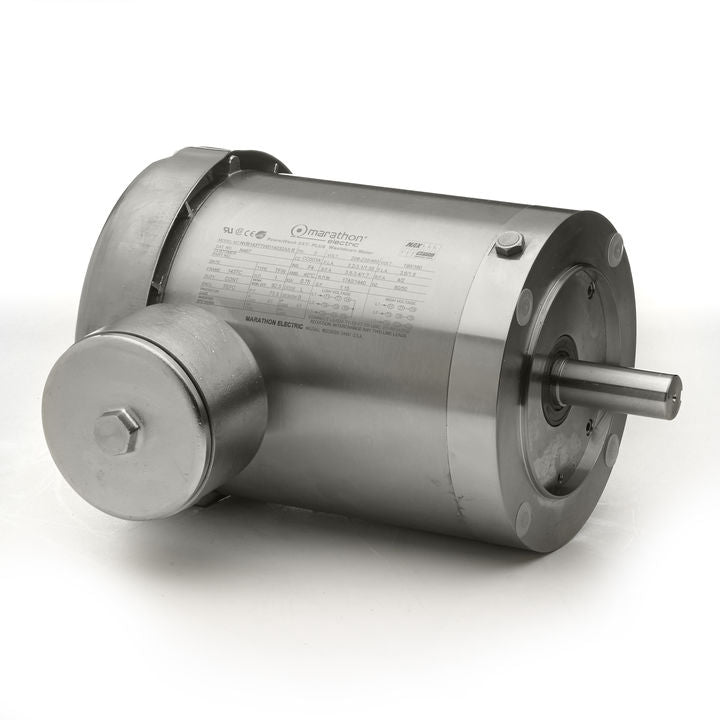

Marathon Electric N486A, 5 Hp, 3600 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 184TTWD16004.

N486A, 5 Hp, 3600 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, SXT-Plus Washdown Duty Motor, 184TTWD16004.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:12.0/6.0 A
Speed:3495 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:89.5
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6207
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:15.27 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.88 in
Assembly/Box Mounting:F1 ONLY
