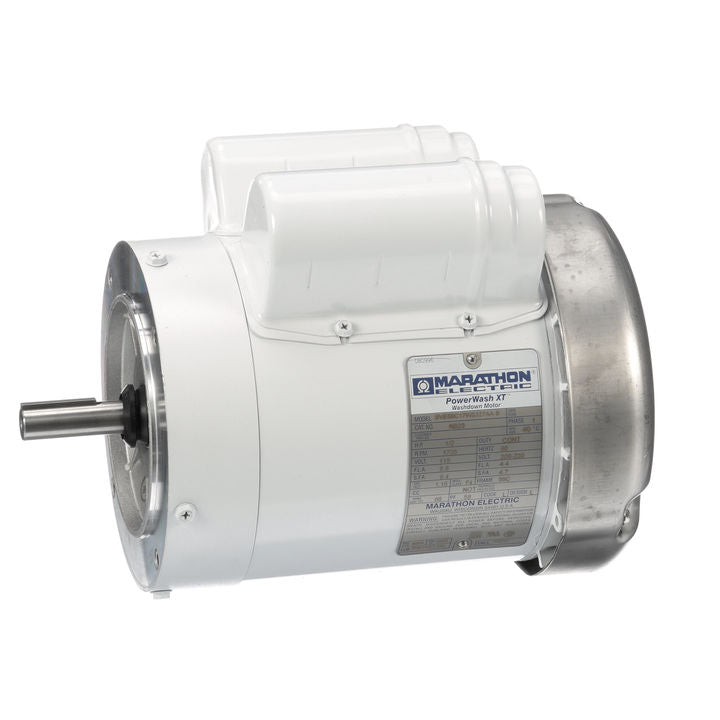

Marathon Electric N523, 1/2 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 56C17W5327.

N523, 1/2 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 56C17W5327.

Engineering Data

Output HP :0.50 HP
Output KW :0.37 kW
Frequency :60 Hz
Voltage :115/208-230 V
Current :8.8/4.4 A
Speed :1725 RPM
Service Factor :1.15
Phase :1
Efficiency :66 %
Duty :Continuous
Insulation Class :F
Design Code :L
KVA Code :L
Frame :56C
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Y
CE :YIP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :4
Rotation :Selective Counterclockwise
Mounting :Round
Motor Orientation :Horizontal Or Shaft Down
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :NEMA 56
Overall Length :11.16 in
Frame Length :5.50 in
Shaft Diameter :0.625 in
Shaft Extension :1.93 in
