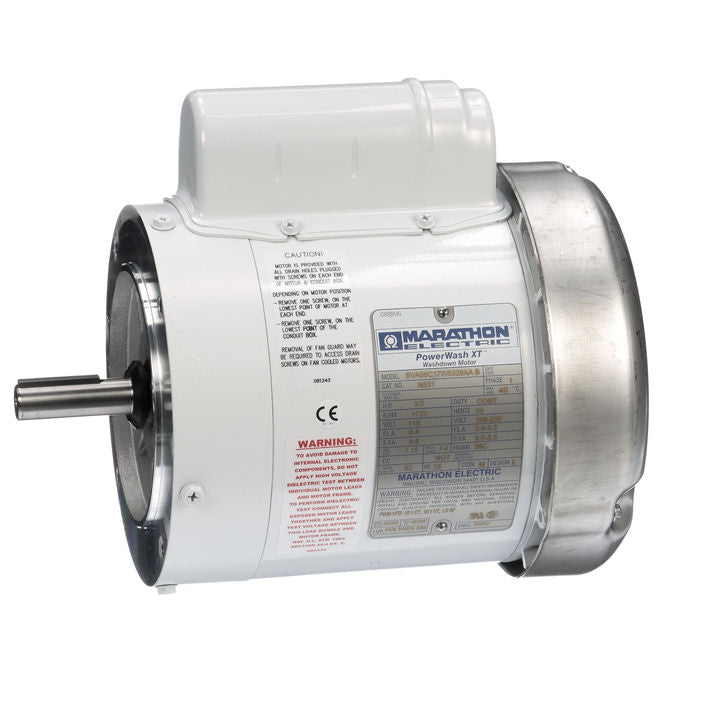

Marathon Electric N530, 1/3 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 056C34W5301.

N530, 1/3 Hp, 3600 Rpm, 56C FR, 115/208-230 Vac, 1 PH, Totally Enclosed, C-Face Footless, White Epoxy Washdown Duty, 056C34W5301.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:5.2/2.7-2.6 A
Speed:3450 rpm
Service Factor:1.15
Phase:1
Efficiency:65 %
Power Factor:67
Duty:Continuous
Insulation Class:F
Design Code:L
KVA Code:L
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:1.31 Ohms
Mounting:Round
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:10.41 in
Frame Length:4.75 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 ONLY
