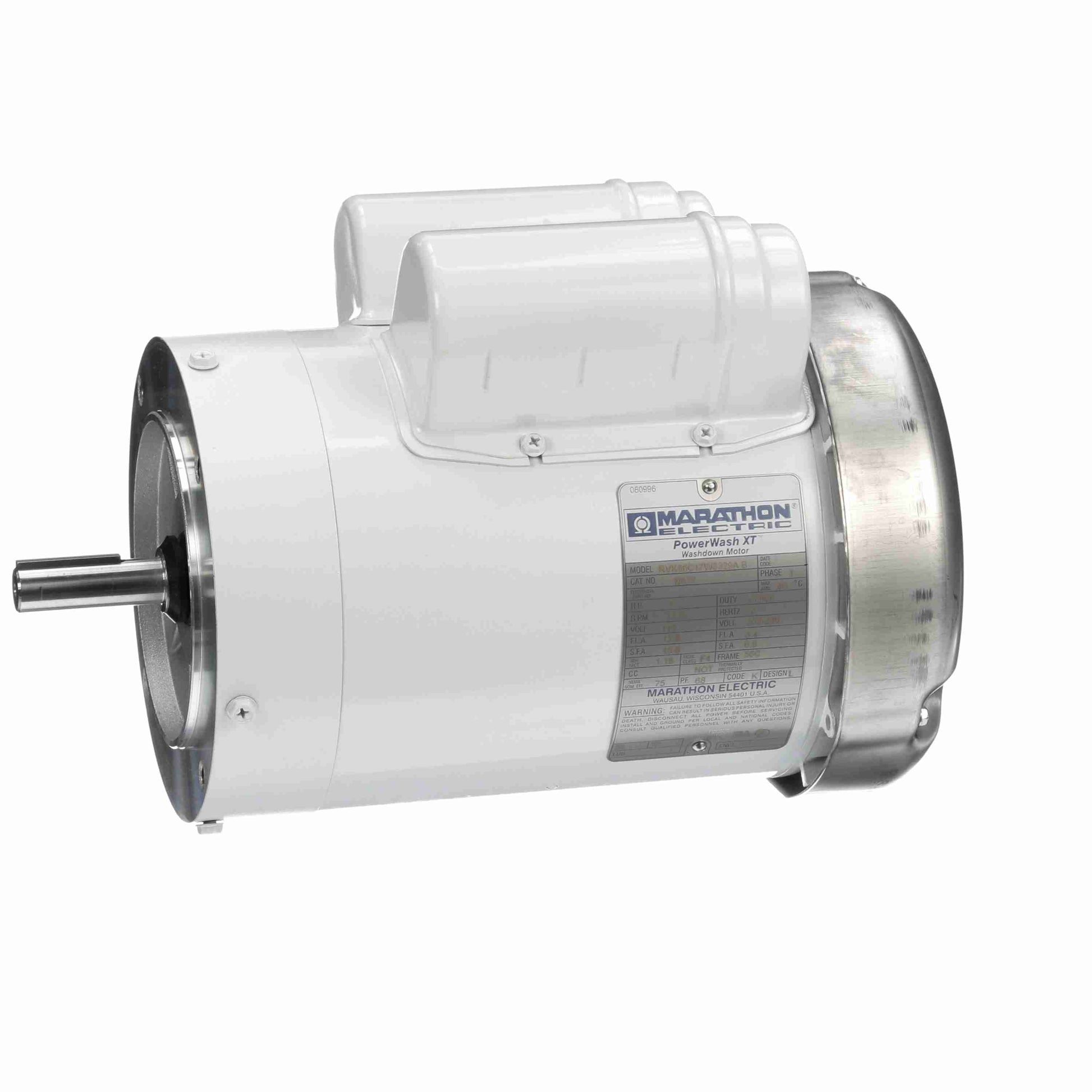

Marathon Electric N542, 1 Hp, 3600 Rpm, 56C FR, 115/208-230 V, 1 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 56C34W5309.

N542, 1 Hp, 3600 Rpm, 56C FR, 115/208-230 V, 1 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 56C34W5309.

Engineering Data

Output HP :1 HP
Output KW :0.75 kW
Frequency :60 Hz
Voltage :115/208-230 V
Current :12.0/6.2-6.0 A
Speed :3450 RPM
Service Factor :1.15
Phase :1
Efficiency :70 %
Duty :Continuous
Insulation Class :F
Design Code :N
KVA Code :J
Frame :56C
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Y
CE :YIP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :2
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :NEMA 56
Overall Length :11.66 in
Frame Length :6.00 in
Shaft Diameter :0.625 in
Shaft Extension :2.06 in
