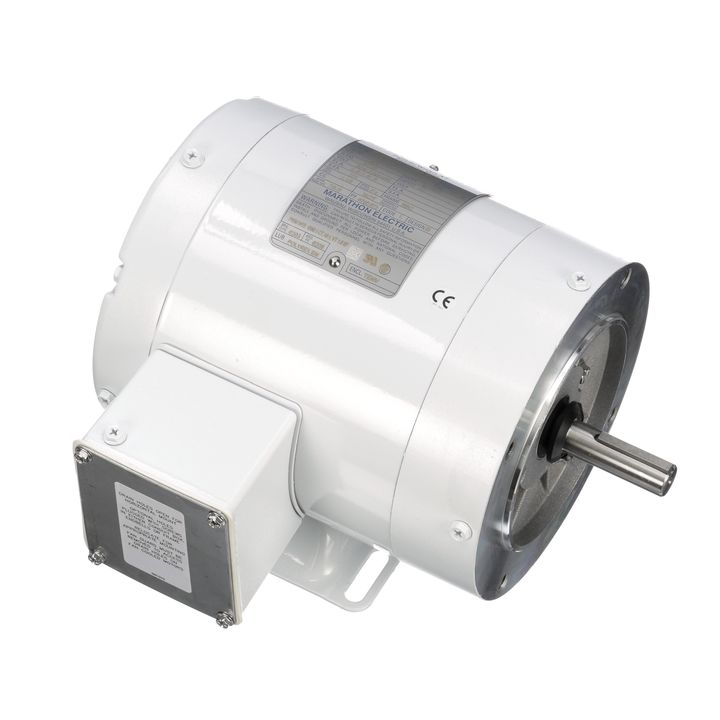

Marathon Electric N600, 3/4 Hp, 1200 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 56T11V5377,

N600, 3/4 Hp, 1200 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 56T11V5377,

Engineering Data

Nameplate Specifications

Output HP  0.75 Hp
Output KW  0.56 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  3.1-3/1.5 A
Speed  1140 rpm
Service Factor  1.15
Phases  3
Efficiency  78.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  J
Frame  56C
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  Y
IP Code  55

Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  STANDARD 56
Overall Length  13.06 in
Frame Length  8 in
Shaft Diameter  0.63 in
Shaft Extension  1.94 in
Assembly/Box Mounting  F1 ONLY
