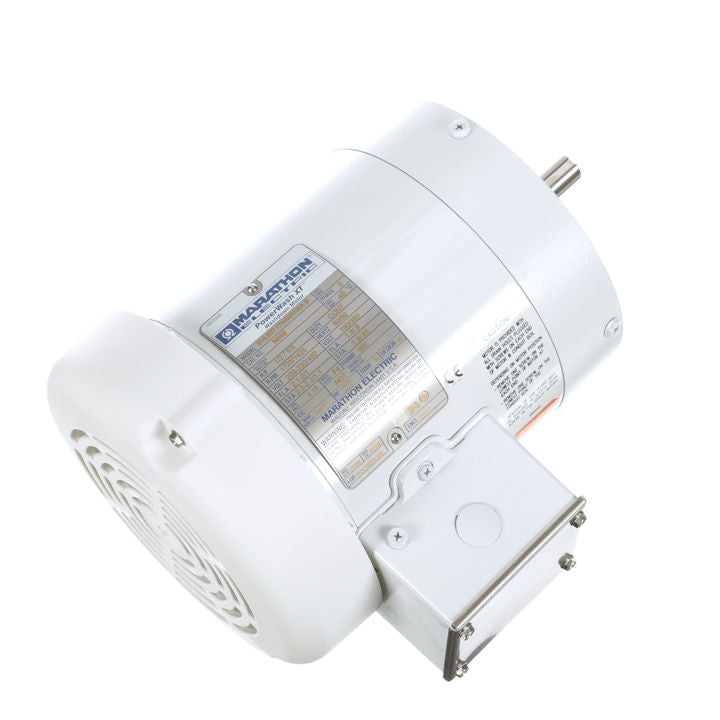

Marathon Electric N668 1/5 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Powerwash, C-Face, Footless, 056T17W99006.

N668 1/5 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Powerwash, C-Face, Footless, 056T17W99006.

Engineering Data

Output HP : 0.50 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 2.1-2.0/1.0 A
Speed : 1725 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 74 %
Duty : Continous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Reversible
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 10.87 in
Frame Length : 5.00 in
Shaft Diameter : 0.625 in
