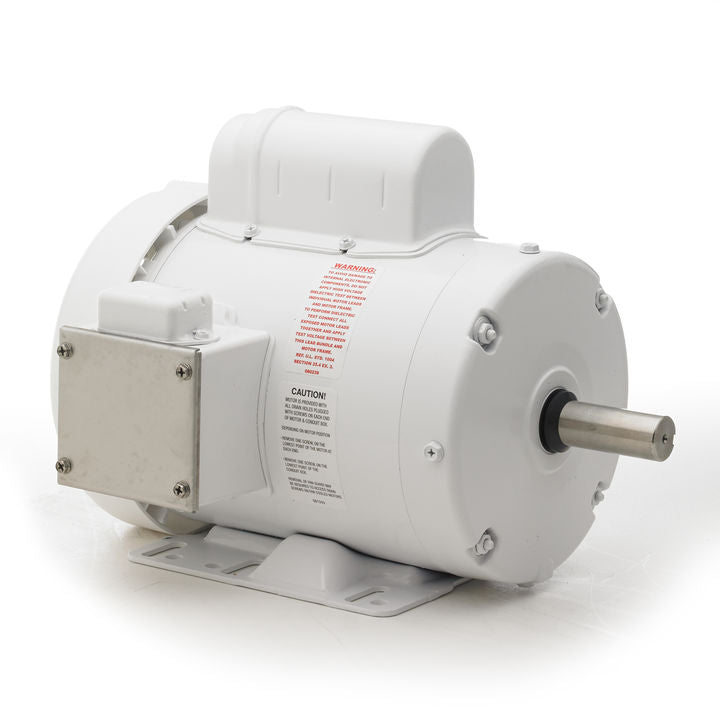

Marathon Electric N680, 3/4 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 056C17W5336.

N680, 3/4 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 056C17W5336.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:8.8/4.4 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:66 %
Power Factor:58
Duty:Continous
Insulation Class:F
Design Code:N
KVA Code:L
Frame:56Z
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:3.4 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:10.81 in
Frame Length:5.00 in
Shaft Diameter:0.625 in
Shaft Extension:1.94 in
Assembly/Box Mounting:F1 ONLY
