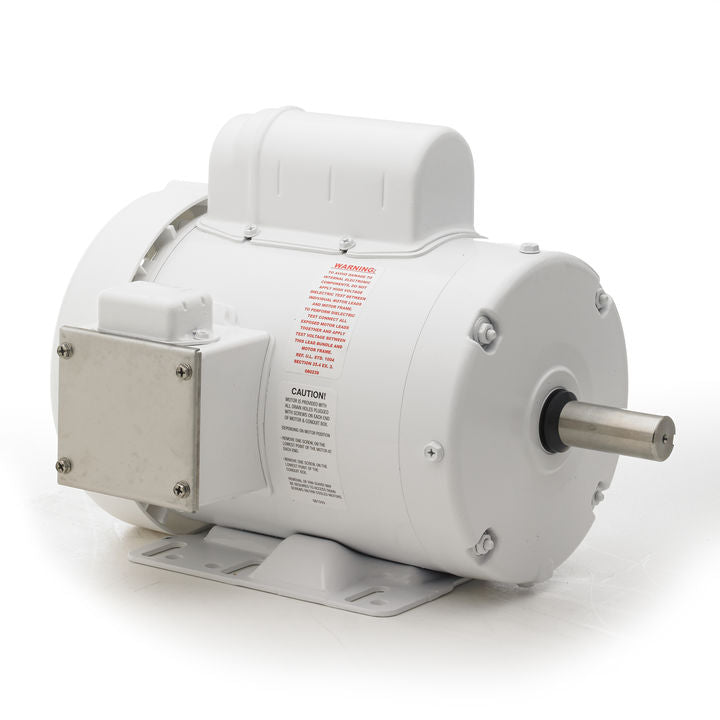

Marathon Electric N682, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 056C17W5338.

N682, 1 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 3 PH, Totally Enclosed, C-Face Footed, White Epoxy Washdown Duty, 056C17W5338.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:12.8/6.4 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:75 %
Power Factor:68
Duty:Continous
Insulation Class:F
Design Code:N
KVA Code:KFrame:56
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:55
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:1.9 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:11.81 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
