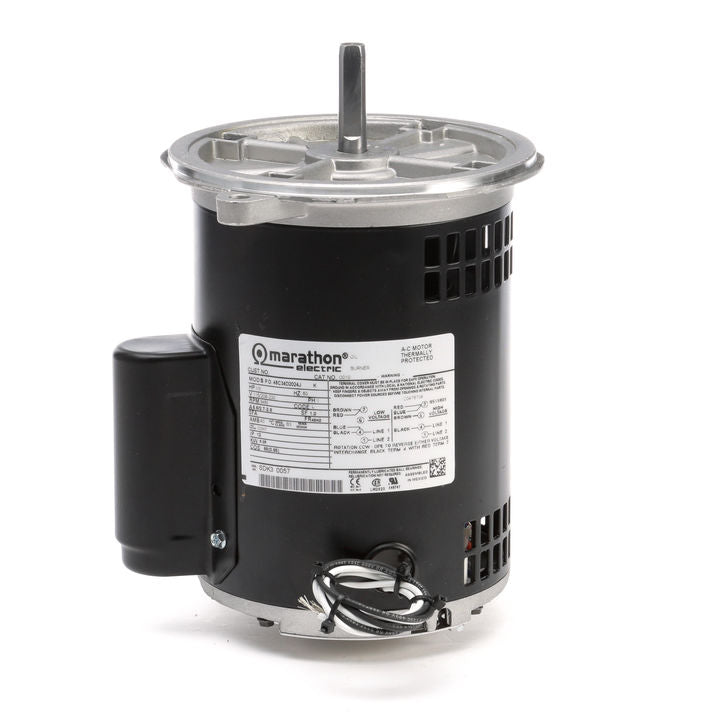

Marathon Electric O010, 1/3 Hp, 3450 Rpm, 48N FR, 115/208-230 Vac, Split PH. And Capacitor Start, Dripproof, NEMA Flange Mount, Oil Burner, Manual Over Load, 48C34D2024.

** This Motor is a Built to order motor, with a 10 pc. min. order, 4 weeks delivery, possible replacement is Model# O013**
O010, 1/3 Hp, 3450 Rpm, 48N FR, 115/208-230 Vac, Split PH. And Capacitor Start, Dripproof, NEMA Flange Mount, Oil Burner, Manual Over Load, 48C34D2024.

Engineering Data

Output HP : 0.33 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 5.6/2.7-2.8 A
Speed : 3450 RPM
Service Factor : 1
Phase : 1
Efficiency : 64 %
Duty : Continuous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : L
Frame : 48NZ
Enclosure : Drip Proof
Overload Protector : Manual
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 12
Technical Specifications
Electrical Type : Capacitor Start Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Selective Counterclockwise
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 10.34 in
Frame Length : 6.75 in
Shaft Diameter : 0.500 in
Shaft Extension : 1.94 in
Assembly/Box Mounting : F1 ONLY
