Industrial Motors

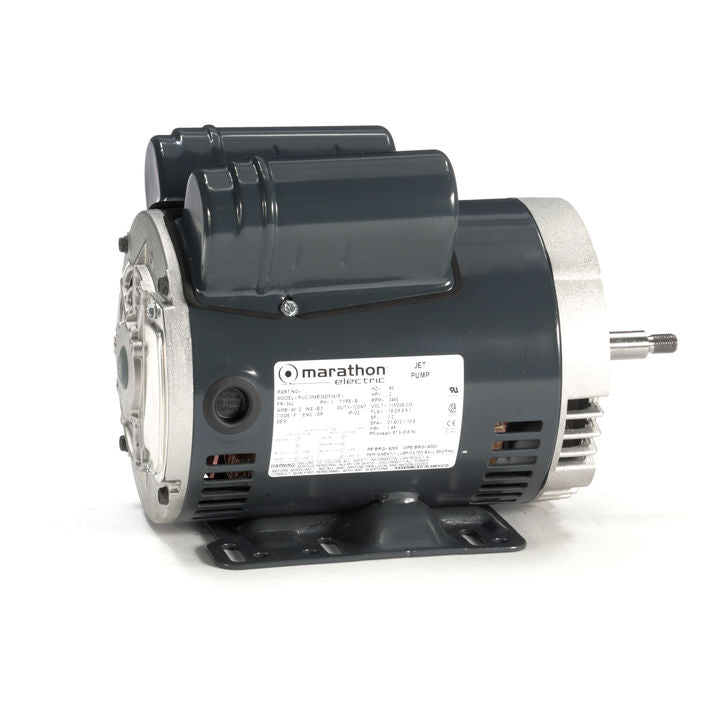

Marathon Electric P253, 1/2 Hp, 1625/1325 RPM, 56 FR, 115 Vac, 1 PH, DP, PSC, Instant Reversing, Definite Purpose Motor, 5KCP36NNB671U

Marathon Electric P253, 1/2 Hp, 1625/1325 RPM, 56 FR, 115 Vac, 1 PH, DP, PSC, Instant Reversing, Definite Purpose Motor, 5KCP36NNB671U

$702.00
$702.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$702.00 $666.90
Sale

P253, 1/2 Hp, 1625/1325 RPM, 56 FR, 115 Vac, 1 PH, DP, PSC, Instant Reversing, Definite Purpose Motor, 5KCP36NNB671U

Engineering Data

Output HP : 1/2 HP
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.4 A
Speed : 1625/1325 RPM
Service Factor : 1
Phase : 1
Efficiency : 57 %
Duty : Continous
Insulation Class : B
KVA Code : A
Frame : 56
Enclosure : Drip Proof
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Permanent Split Capacitor(PSC)
Starting Method : N/R
Poles : 4
Rotation : Instant Reversible
Mounting : Rigid Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.85 in
Frame Length : 6.22 inS
haft Diameter : 0.63 in
Shaft Extension : 1.88 in
