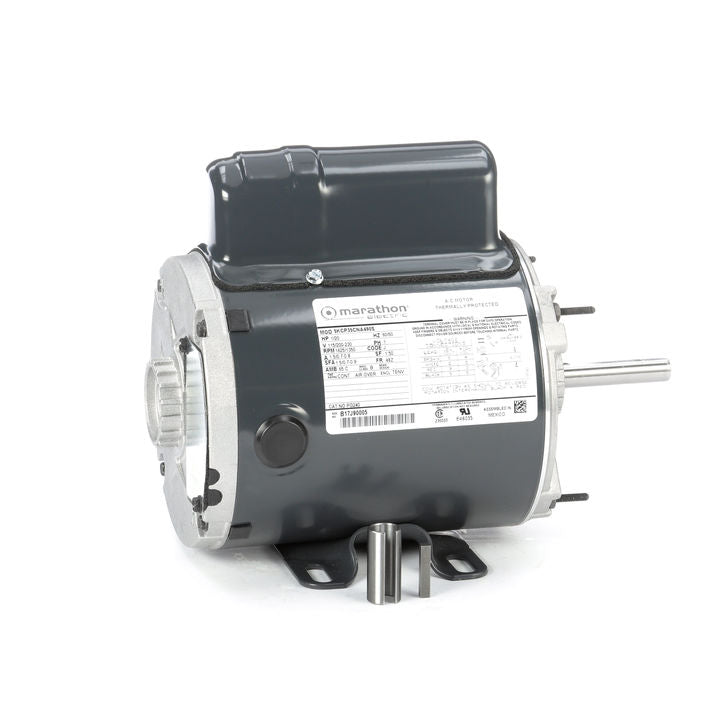

Marathon Electric PG240, 1/20 HP, 1625 Rpm, 48Z FR, 115/200-230 Vac, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Rigid Base, 5KCP35CNA490S

PG240, 1/20 HP, 1625 Rpm, 48Z FR, 115/200-230 Vac, 1 Phase, Ball Bearing, Permanent Split Capacitor, Rigid Base, 5KCP35CNA490S

Engineering Data

Output HP : 0.05 Hp
Output KW : 0.04 kW
Frequency : 60 Hz
Voltage : 115/200-230 V
Current : 1.5,0.7-0.8 A
Speed : 1625 rpm
Service Factor : 1.5
Phase : 1
Efficiency : 35.5 %
Duty : Continous
Insulation Class : B
KVA Code : J
Frame : 48Z
Enclosure : Totally Enclosed Non Ventilated
verload Protector : AUTO
Ambient Temperature : 65 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Permanent Split Capacitor(PSC)
Starting Method : N/R
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Any
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.32 in
Frame Length : 5.79 in
Shaft Diameter : 0.500 in
Shaft Extension : 2.25 in
Thru-bolts Extension : 0 in
UPC : 722856041791
Weight : 12.00 LB
