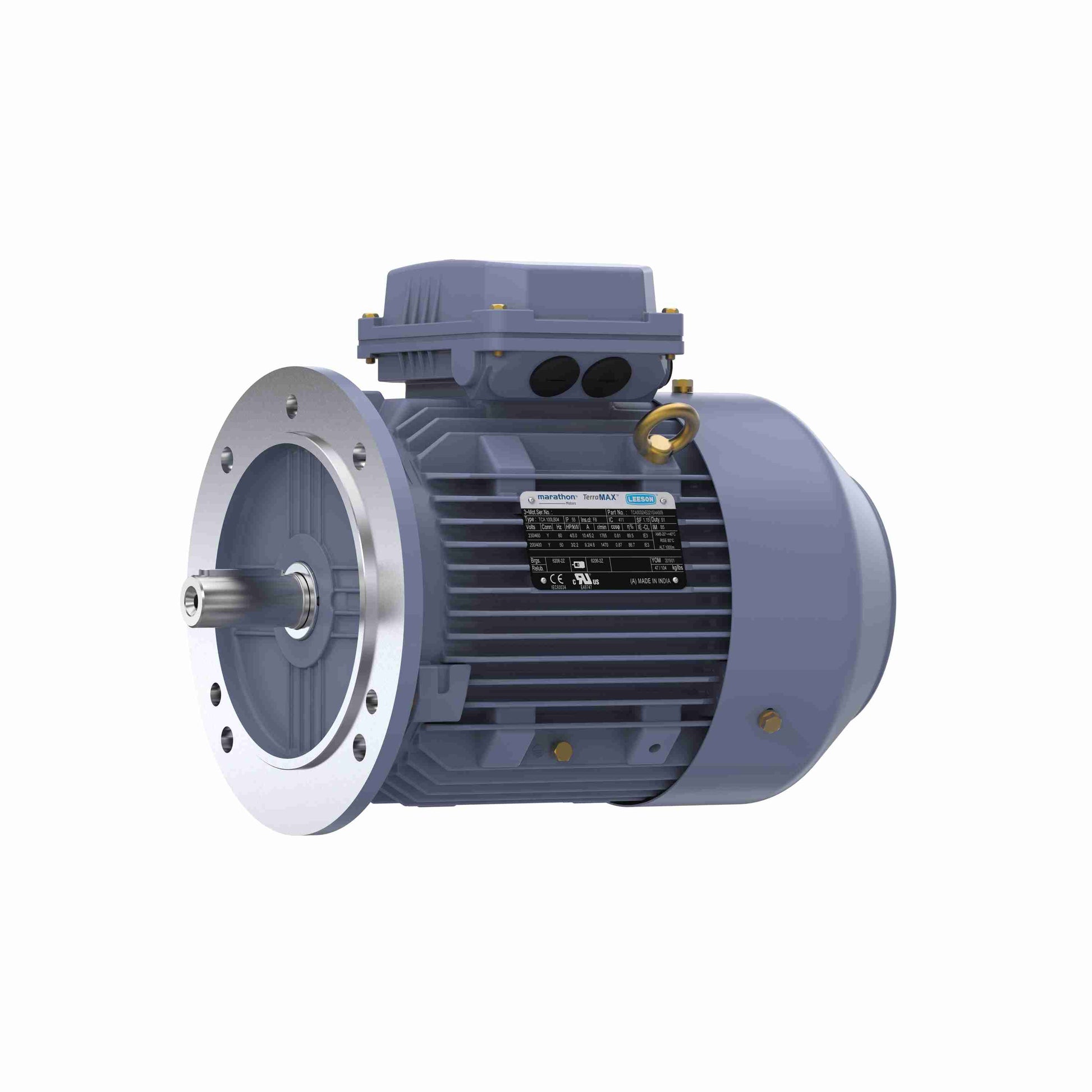

Marathon Electric R217, 11/2 Hp, 1200 Rpm, 100L FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA1P13AE221GAA009.

R217, 11/2 Hp, 1200 Rpm, 100L FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA1P13AE221GAA009.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:4.4/2.2 A
Speed:1175 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:N (IEC)
KVA Code:K
Frame:100L
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:N
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:9.64 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:398.00 in
Frame Length:200.00 in
Shaft Diameter:28.000 in
Shaft Extension:60 in
Assembly/Box Mounting:F3
