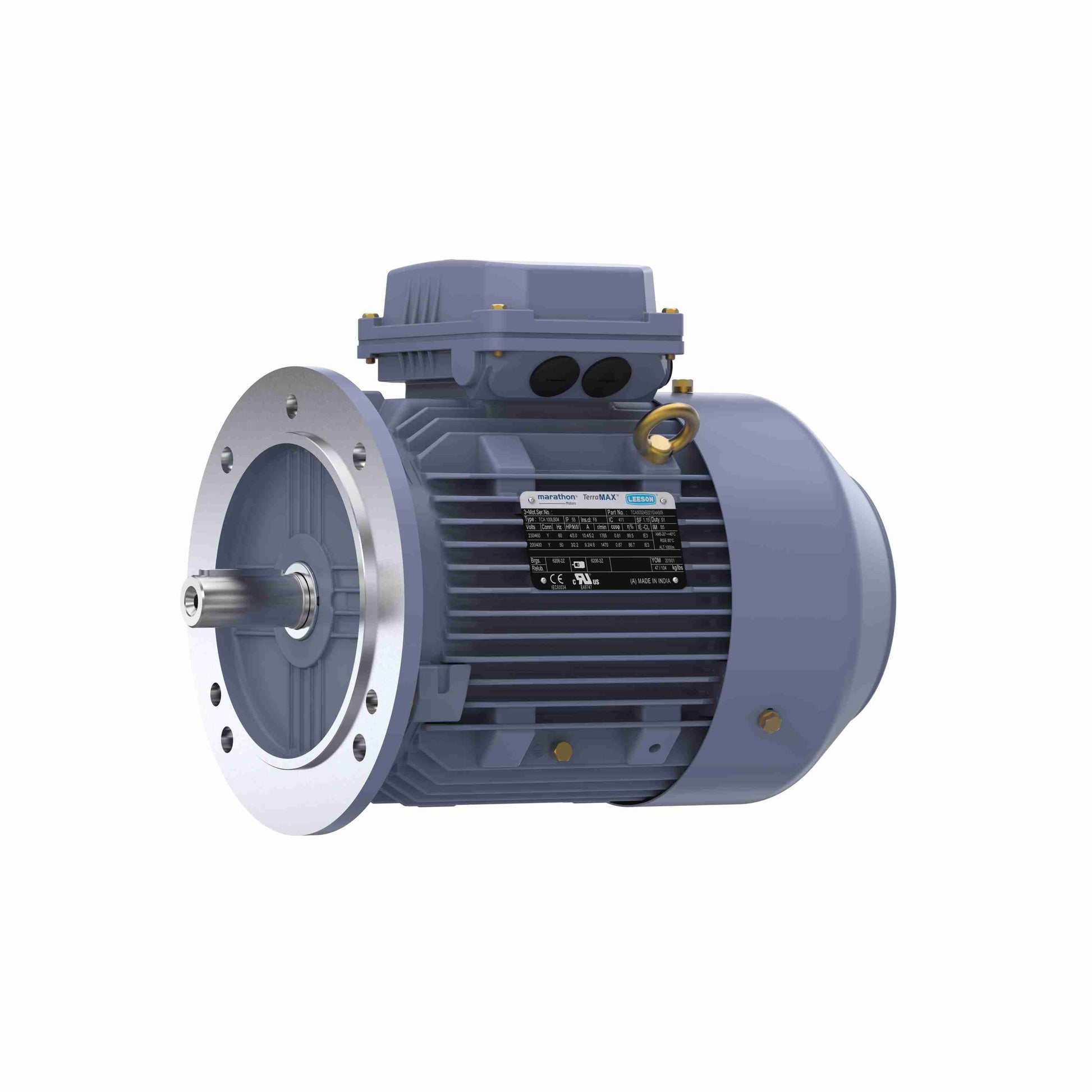

Marathon Electric R220, 2 Hp, 1800 Rpm, 100L FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA1P53AE221GAA009.

R220, 2 Hp, 1200 Rpm, 100L FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA1P53AE221GAA009.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1175 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:N
(IEC)KVA Code:K
Frame:100L
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:N
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:6.5 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:15.67 in
Frame Length:7.87 in
Shaft Diameter:1.102 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
