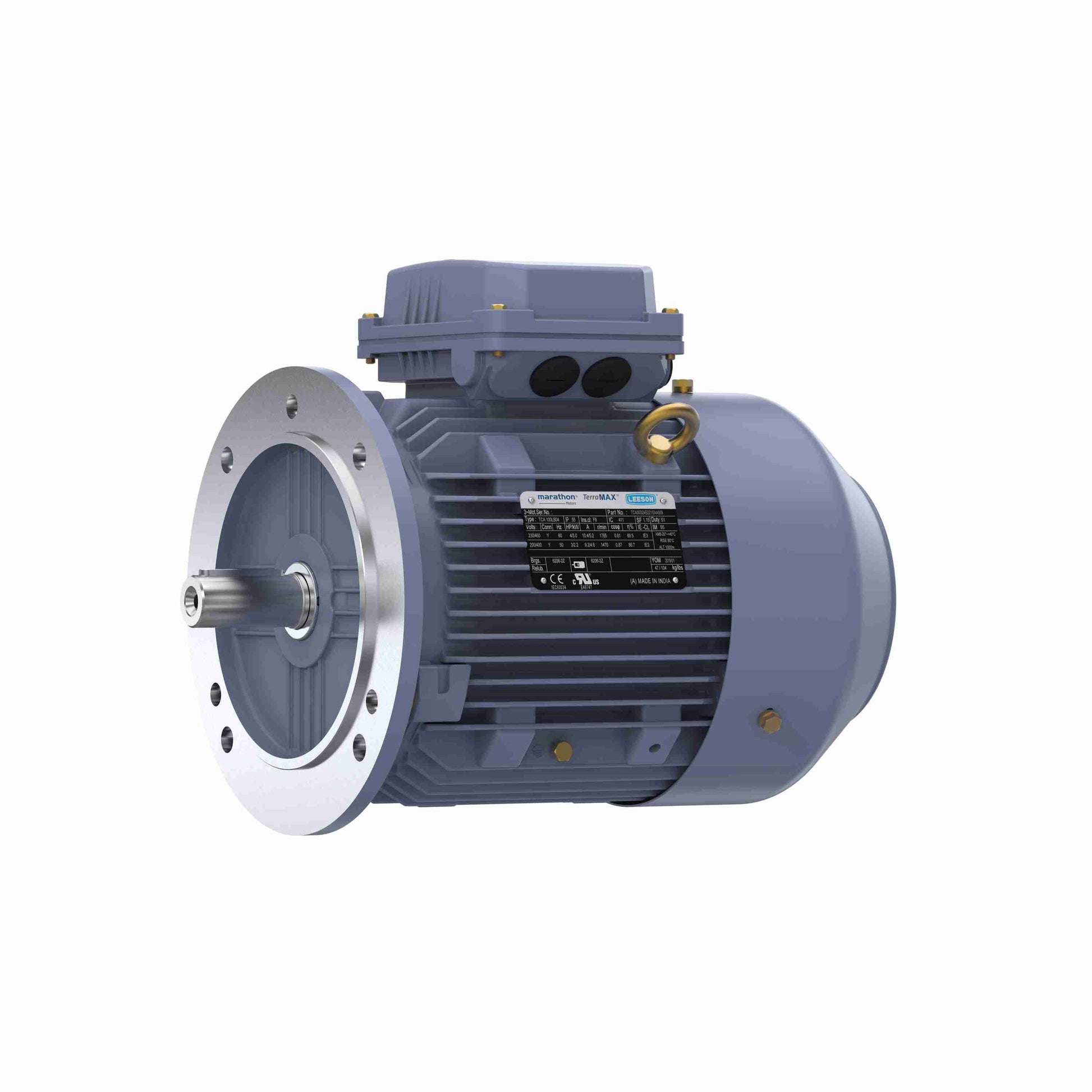

Marathon Electric R225, 5 1/2 Hp, 1800 Rpm, 112M FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA0042AE221GAA009.

R225, 5 1/2 Hp, 1800 Rpm, 112M FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA0042AE221GAA009.

Engineering Data

Output HP:5.50 Hp
Output KW:4.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:13.8/6.9 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:80
Duty:Continuous
Insulation Class:F
Design Code:N
(IEC)KVA Code:M
Frame:112M
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:N
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:2.33 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:15.71 in
Frame Length:6.85 in
Shaft Diameter:1.102 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
