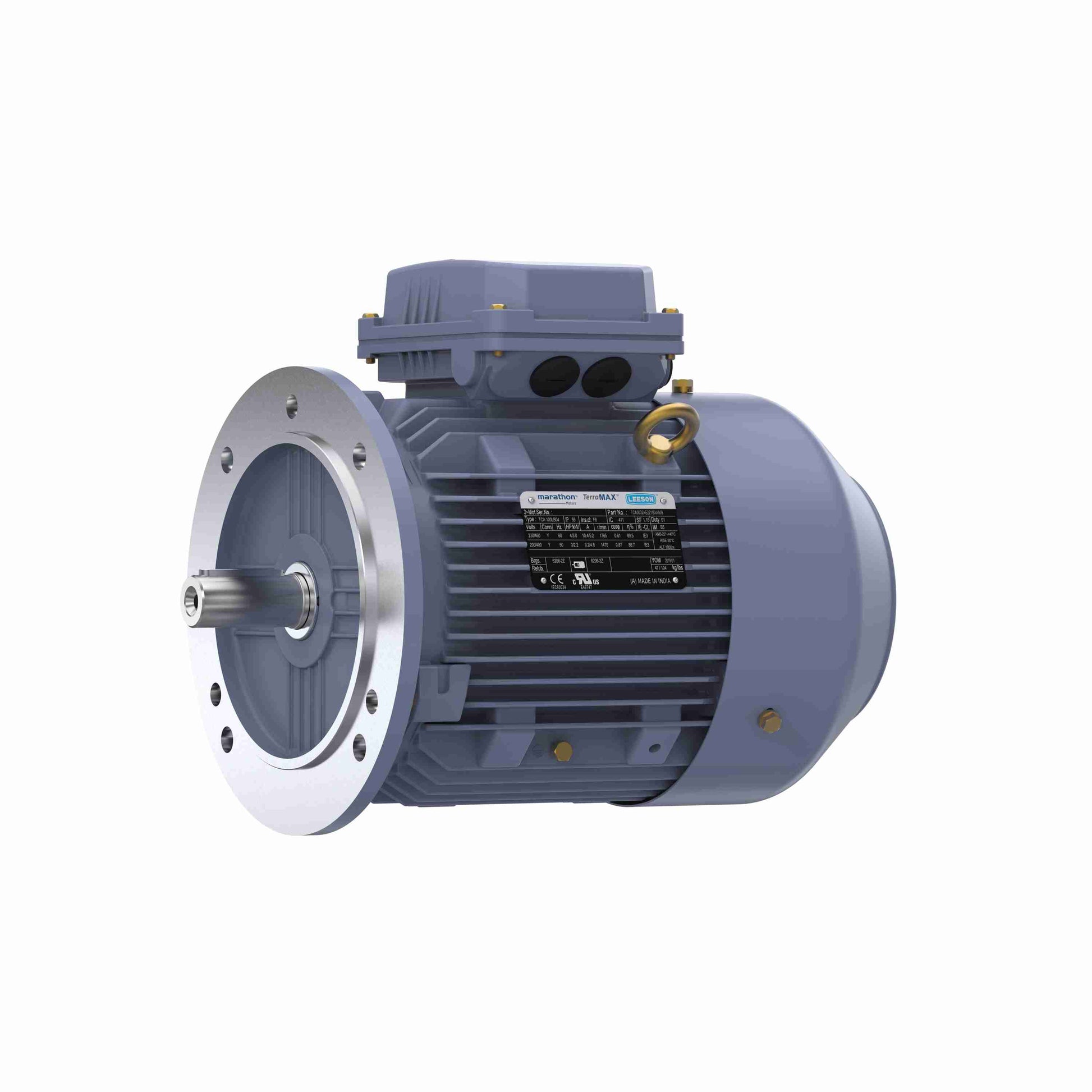

Marathon Electric R226, 5 1/2 Hp, 1200 Rpm, 132M FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA0043AE221GAA009.

R226, 5 1/2 Hp, 1200 Rpm, 132M FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Globetrotter IEC Frame Motor, TCA0043AE221GAA009.

Engineering Data

Output HP:5.50 Hp
Output KW:4.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:16.2/8.1 A
Speed:1180 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:68
Duty:Continuous
Insulation Class:F
Design Code:N
(IEC)KVA Code:L
Frame:132M
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6308
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:N
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:1.61 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:19.80 in
Frame Length:9.45 in
Shaft Diameter:1.496 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
