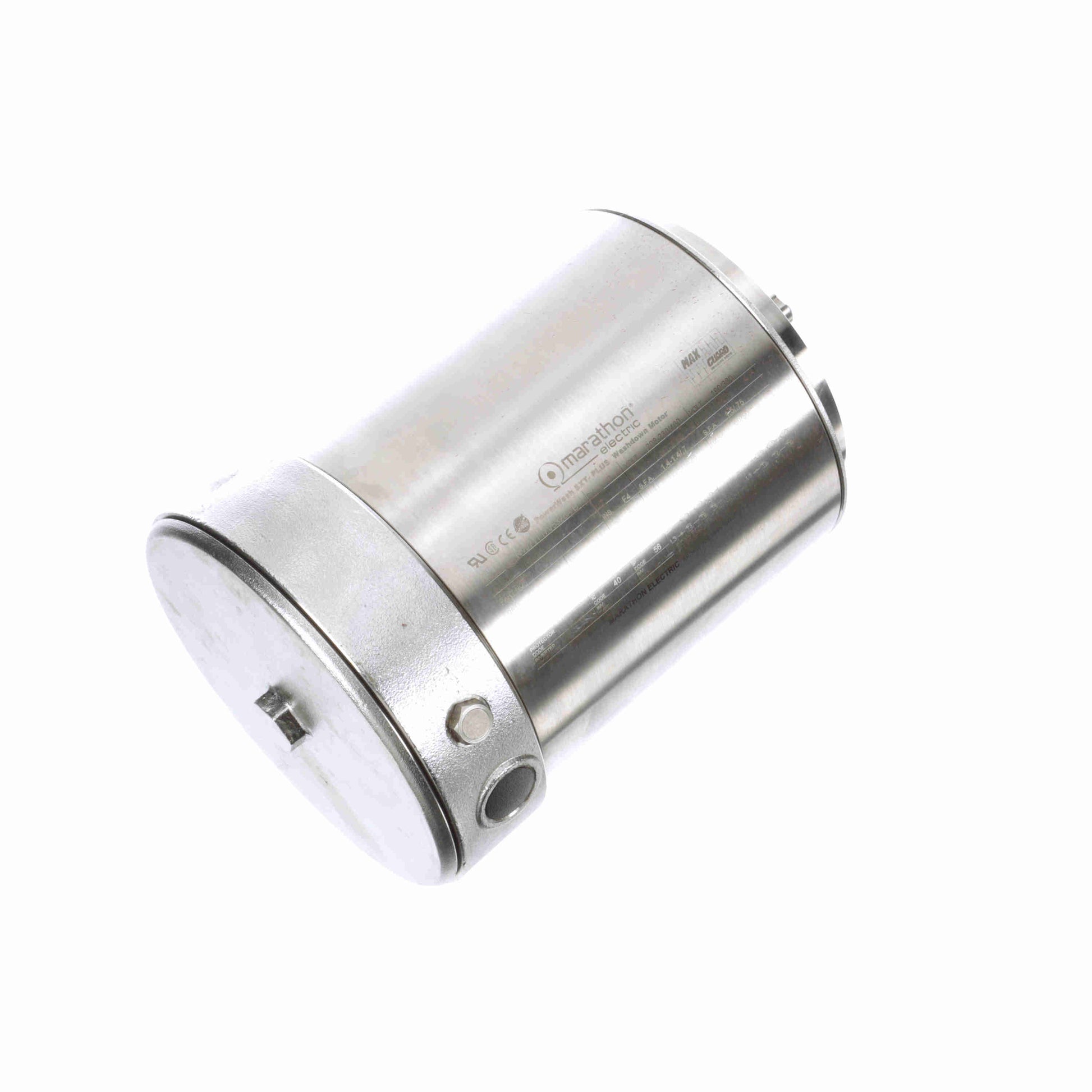

Marathon Electric R700, 1/3-.25 Hp, 1800 Rpm, 71 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 80T17V5327.

R700, 1/3-.25 Hp, 1800 Rpm, 71 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 80T17V5327.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:1.3-1.3/0.65 A
Speed:1725 rpm
Service Factor:1.15
Phase:3
Efficiency:72 %
Power Factor:67.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:71
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:Y
IP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:11 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:IEC
Overall Length:9.87 in
Shaft Diameter:0.555 in
Shaft Extension:1.18 in
Assembly/Box Mounting:F1 ONLY
