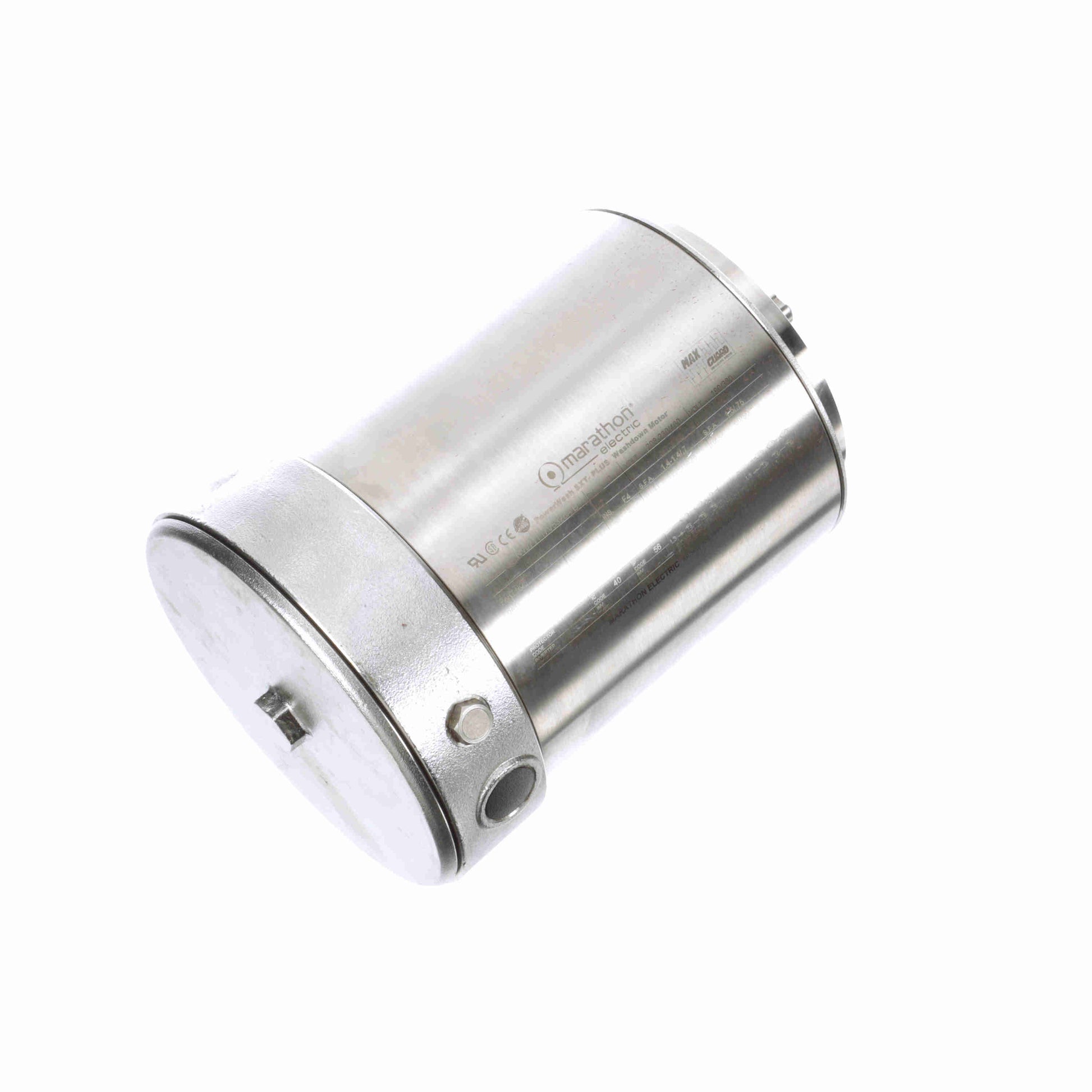

Marathon Electric R704, 13/4-.55 Hp, 1800 Rpm, 80 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 80T17W5326.

R704, 13/4-.55 Hp, 1800 Rpm, 80 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 80T17W5326.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:1.9-1.8/0.90 A
Speed:1725 rpm
Service Factor:1.15
Phase:3
Efficiency:76 %
Power Factor:74
Duty:Continous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:80
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:IEC
Overall Length:11.47 in
Shaft Diameter:0.750 in
Shaft Extension:1.57 in
Assembly/Box Mounting:F1 ONLY
