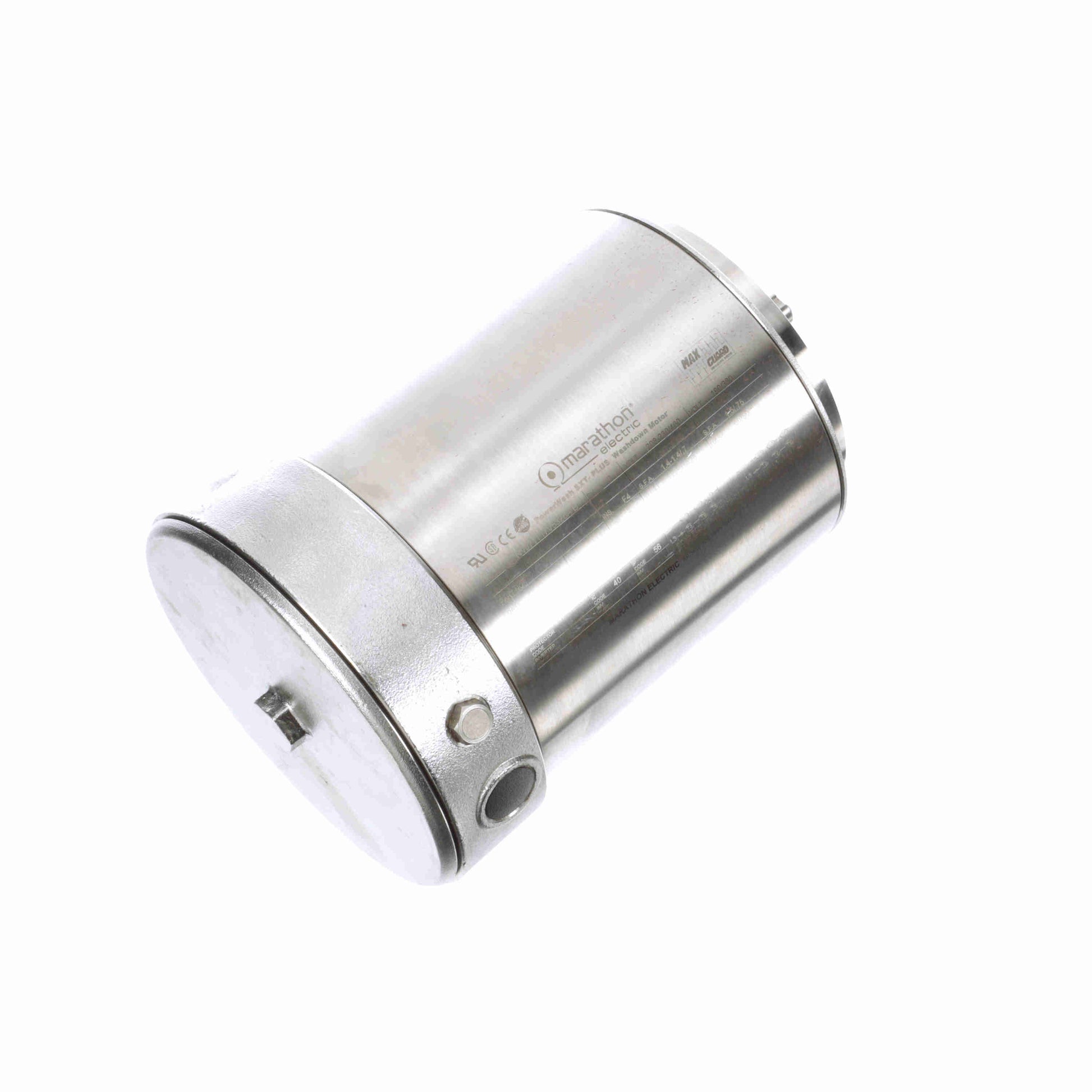

Marathon Electric R707, 2-1.5 Hp, 1800 Rpm, 90L FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 90LT17W4028.

R707, 2-1.5 Hp, 1800 Rpm, 90L FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B5 Footed, Stainless/BISSC, 90LT17W4028.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:6.0-5.6/2.8 A
Speed:1740 rpm
Service Factor:1.15
Phase:3
Efficiency:84 %
Power Factor:75
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:90L
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:7.44 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:IEC
Overall Length:13.34 in
Shaft Diameter:1.000 in
Shaft Extension:1.97 in
Assembly/Box Mounting:F1 Only
