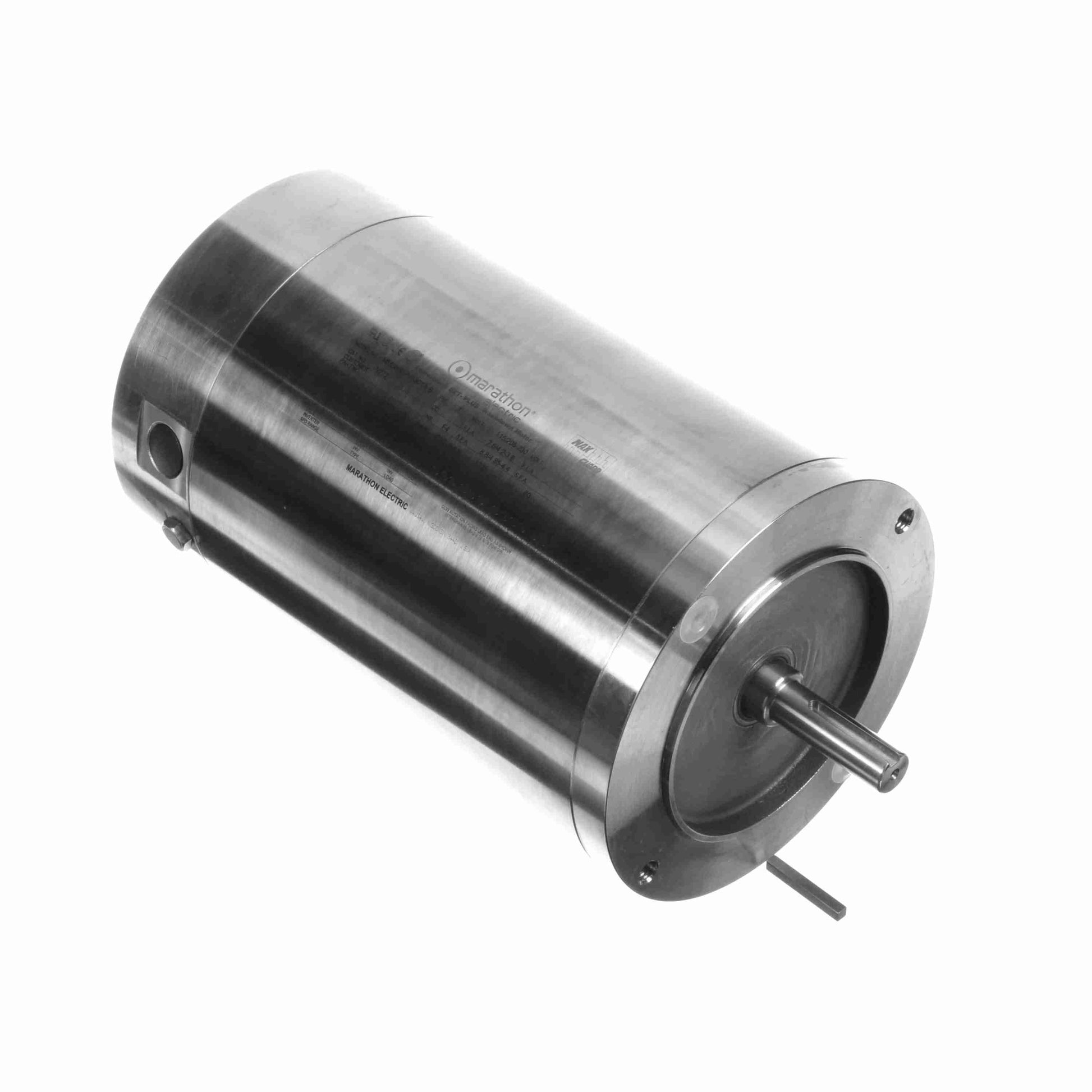

Marathon Electric R730, 1/3 Hp, 1800 Rpm, 80 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B14 Footed, (Rigid Base), Stainless/BISSC, 80T17V5330.

R730, 1/3 Hp, 1800 Rpm, 80 FR, 208-230/460 Vac, 3 Phase, Totally Enclosed, B14 Footed, (Rigid Base), Stainless/BISSC, 80T17V5330.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:1.3-1.3/0.65 A
Speed:1725 rpm
Service Factor:1.15
Phase:3
Efficiency:72 %
Power Factor:67.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:80
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:11 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:IEC
Overall Length:10.22 in
Shaft Diameter:0.750 in
Shaft Extension:1.57 in
Assembly/Box Mounting:F3
