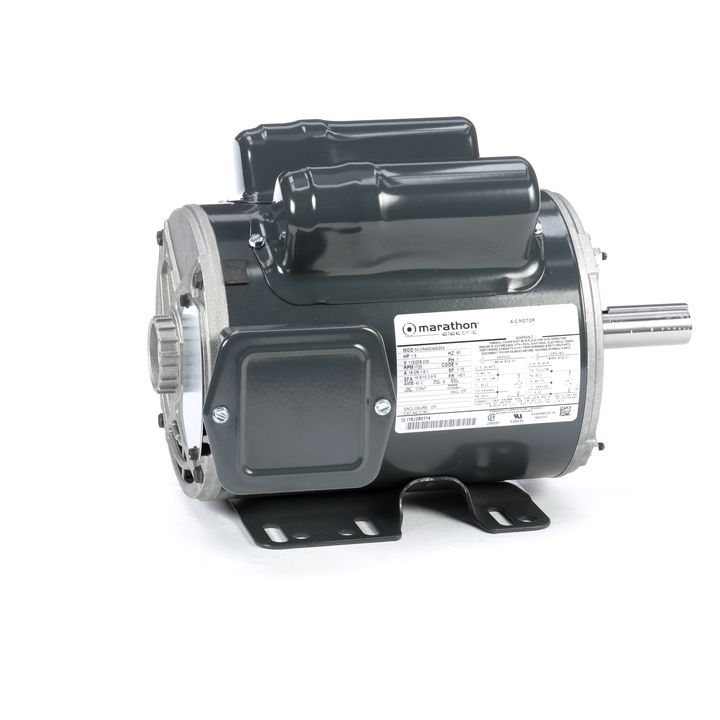

Marathon Electric S039A, 1 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, Special Purpose, Manual over load, 56C17DRR70020A1

S039A, 1 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, Special Purpose, Manual over load, 56C17DRR70020A1.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:115/208-230 V
Current:8.0/4.4-4.0 A
Speed:1725 rpm
Service Factor:1
Phase:1
Efficiency:82.6 %
Power Factor:96
Duty:Continuous
Insulation Class:B
Design Code:N
KVA Code:K
Frame:56
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:2.12 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.49 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
