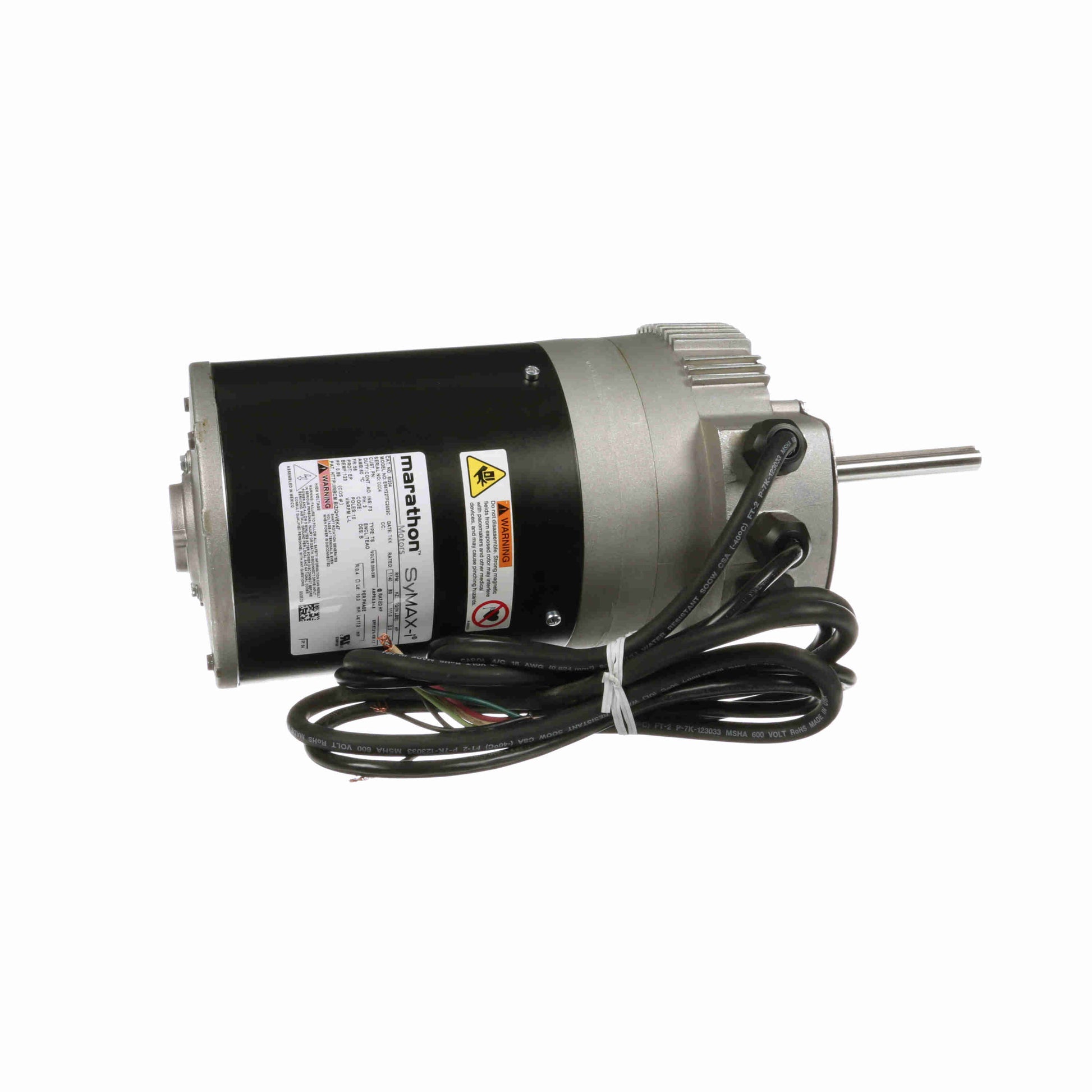

Marathon Electric S1202, 1 Hp, 1200 Rpm, 56 FR, 200-230 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, (PMAC) E56Y22TFC2050.

S1202, 1 Hp, 1200 Rpm, 56 FR, 200-230 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, (PMAC) E56Y22TFC2050.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:200-230 V
Current:3.0-2.8 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:84.1 %
Power Factor:81
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:NA
Frame:56
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:60 °C
Drive End Bearing Size:205
Opp Drive End Bearing Size:205
UL:Recognized
CSA:YCE:NIP Code:54
Technical Specifications
Electrical Type:AC Permanent Magnet
Starting Method:Inverter Only
Poles:10
Rotation:Reversible
Mounting:Round
Motor Orientation:SHAFT UP
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:16.02 in
Frame Length:4.75 in
Shaft Diameter:5/8 in
Shaft Extension:5.06 in
Assembly/Box Mounting:F1/F2 CAPABLE
