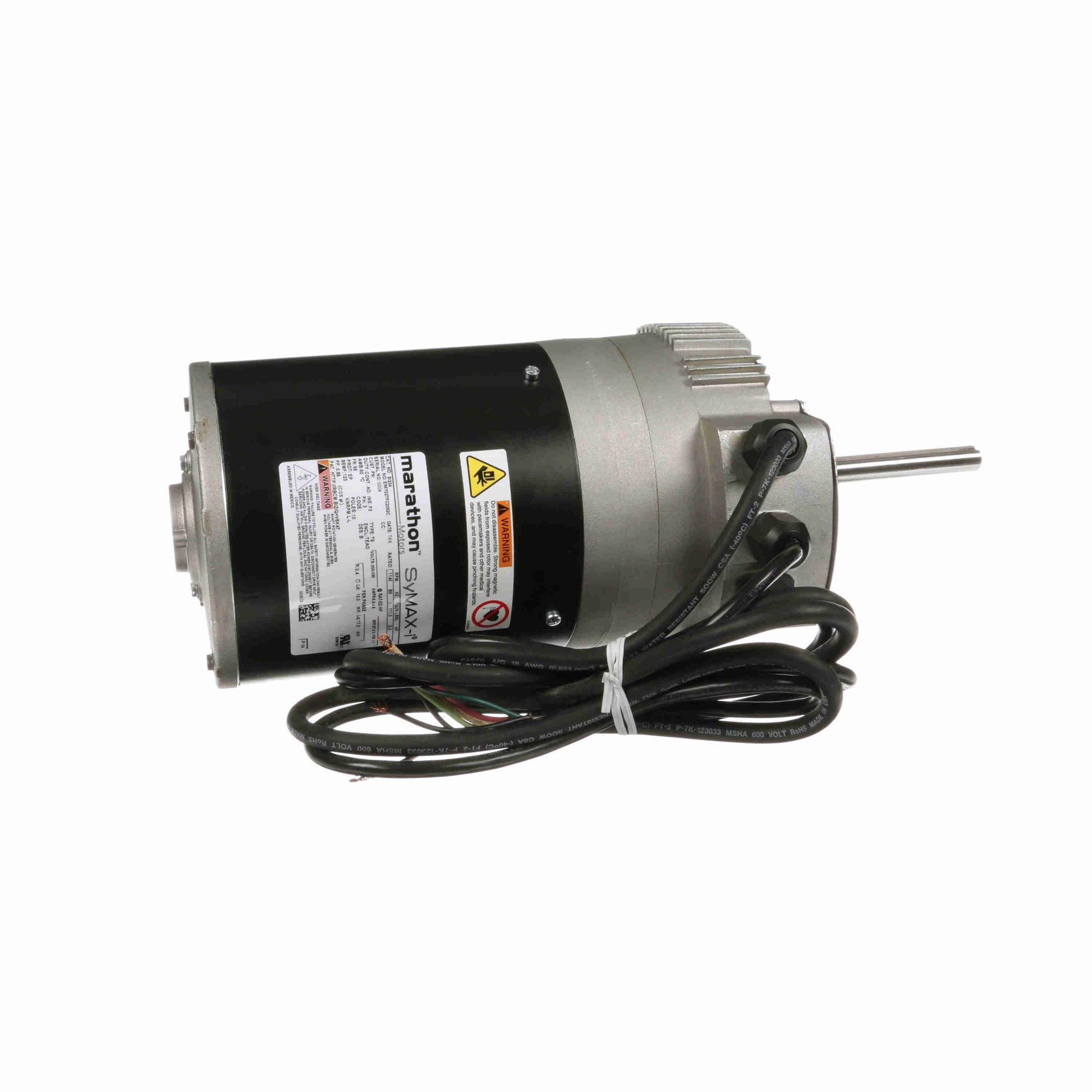

Marathon Electric S1203, 1 1/2 Hp, 1200 Rpm, 56 FR, 200-230 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, (PMAC) E56Y22TFC2051.

S1203, 1 1/2 Hp, 1200 Rpm, 56 FR, 200-230 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, (PMAC) E56Y22TFC2051.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:200-230 V
Current:4.2-3.9 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:86.2 %
Power Factor:85
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:N/A
Frame:56
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:60 °C
Drive End Bearing Size:205
Opp Drive End Bearing Size:205
UL:Recognized
CSA:Y
CE:NIP Code:54
Technical Specifications
Electrical Type:AC Permanent Magnet
Starting Method:Inverter Only
Poles:10
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:SHAFT UP
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:16.52 in
Frame Length:5.25 in
Shaft Diameter:5/8 in
Shaft Extension:5.06 in
Assembly/Box Mounting:F1/F2 CAPABLE
