Industrial Motors

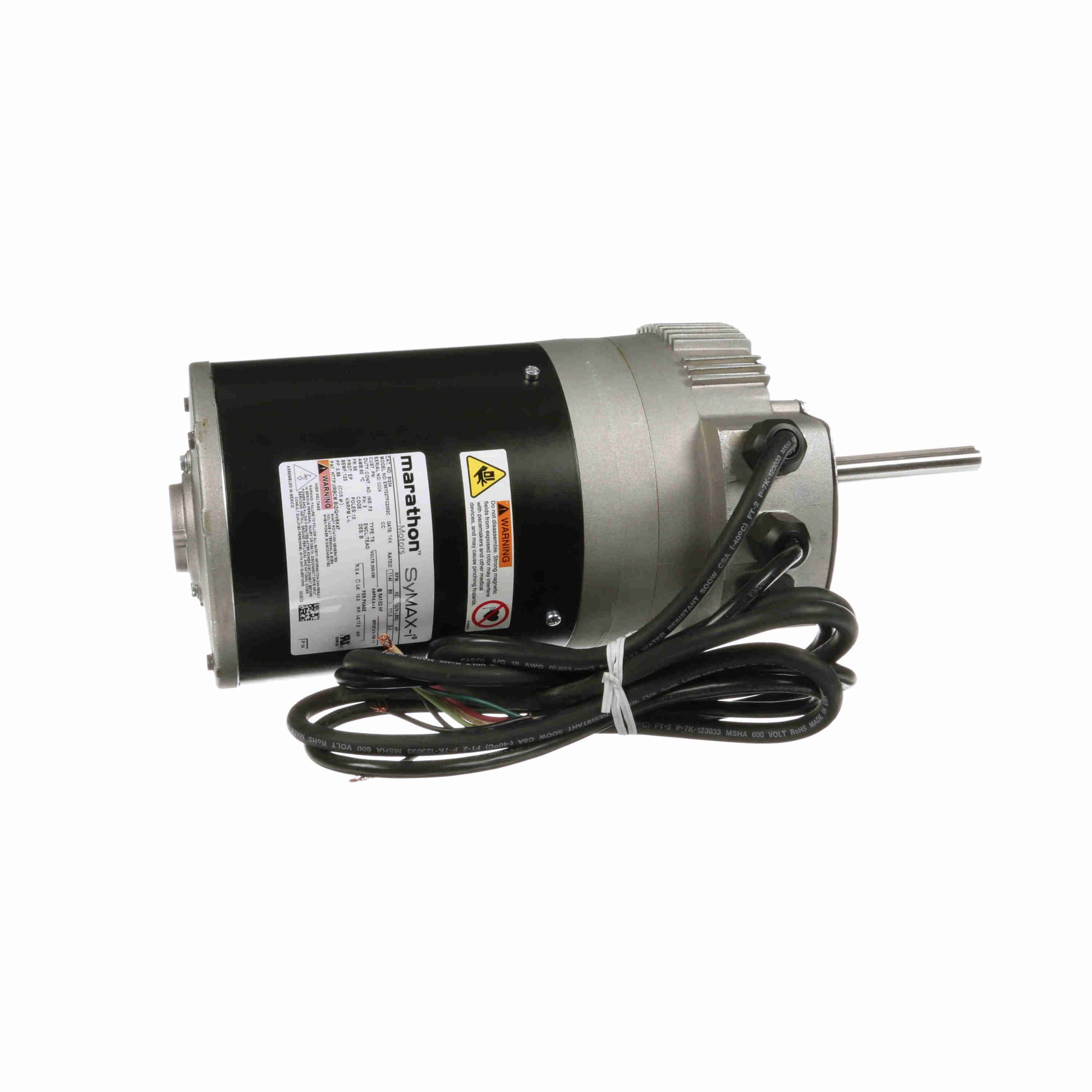

Marathon Electric S1404, 2 Hp, 1200 Rpm, 56 FR, 460 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, E56Y42TFC2052.

Marathon Electric S1404, 2 Hp, 1200 Rpm, 56 FR, 460 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, E56Y42TFC2052.

$3,063.00
$3,063.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$3,063.00 $2,909.85
Sale

S1404, 2 Hp, 1200 Rpm, 56 FR, 460 Vac, 3 Phase, TEAO, Permanent Magnet Rotor, E56Y42TFC2052.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:460 V
Current:2.3 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:87.8 %
Power Factor:91
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:N/A
Frame:56
Enclosure:Totally Enclosed Air Over
Thermal Protection:No
Ambient Temperature:60 °C
Drive End Bearing Size:205
Opp Drive End Bearing Size:205

Starting Method:Inverter Only
Poles:10
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:SHAFT UP
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:17.76 in
Frame Length:6.50 in
Shaft Diameter:5/8 in
Shaft Extension:5.06 in
Assembly/Box Mounting:F1/F2 CAPABLE
