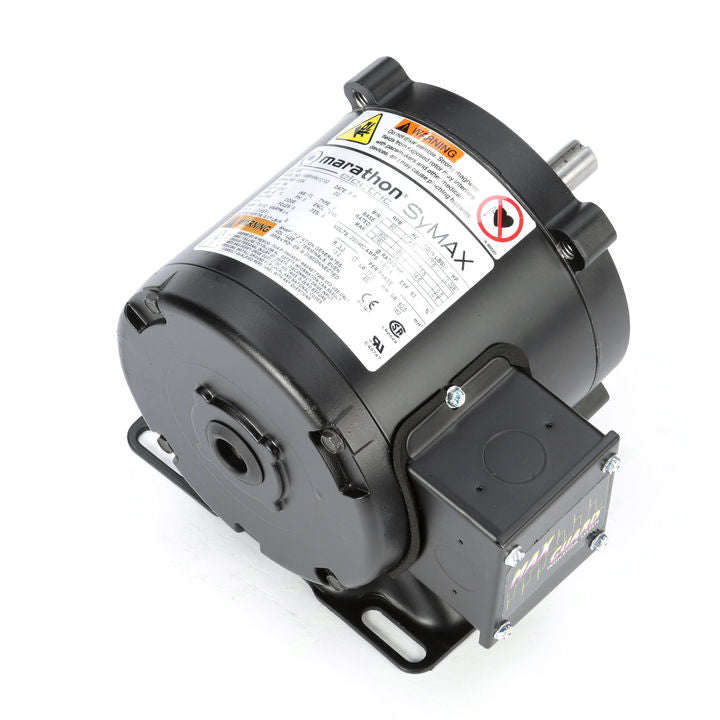

Marathon Electric SY005, 2 Hp,1800 Rpm, 56C FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 056PNRA10103.

SY005, 2 Hp,1800 Rpm, 56C FR, 230/460 Vac, 3 PH, Permanent Magnet AC Motors, TENV & TEFC, 056PNRA10103.

Nameplate Specifications

Output HP  2 Hp
Output KW  1.49 kW
Frequency  90 Hz
Voltage   230/460 V
Current  7.05/3.5 A
Speed  1800 rpm
Service Factor  1
Phases  3
Efficiency  89 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  PM
KVA Code  N/A
Frame  S56C
Enclosure  TENV
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Y
CE  N
IP Code  43

Technical Specifications

Electrical Type  AC PERMANENT MAGNET
Starting Method INVERTER ONLY
Poles  6
Rotation  REV
Mounting  RIGID
Motor Orientatio  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type STANDARD56
Overall Length  10.68 in
Shaft Diameter  0.63 in
Shaft Extension  2.06 in
Assembly/Box Mounting  F1 ONLY
