Industrial Motors

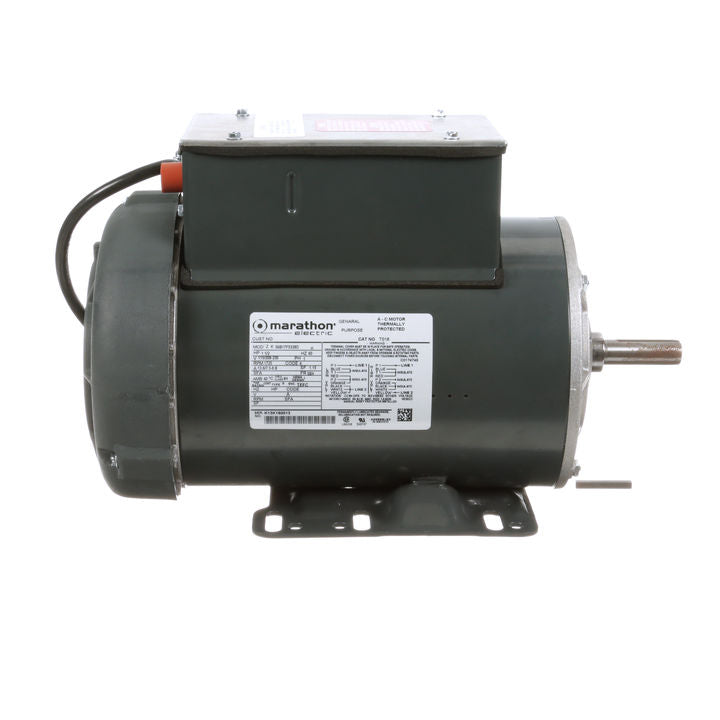

Marathon Electric T018, 1 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5328

Marathon Electric T018, 1 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5328

$1,419.00
$1,419.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,419.00 $1,348.05
Sale

T018, 1 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5328

Engineering Data

60 Hertz
HP 1 1/2
Voltage 115/208-230
kW 1.12
FL Amps 13.6/7.5-6.8
RPM 1800
FL Eff N/A %
SF 1.15

Phase 1
Insulation Class B
Frame 56H
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting Rigid NEMA
Design L
Orientation HORIZONTAL
Starting Type CAP START CAP RUN
Assembly F3
KVA Code K
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A Rotation
SELECTIVE CCW
Opposite End Bearing Size N/A
Weight 44 LB lbs
CE N/A CSA Y
UL Recognized Construction
Thermal Protection Manual Protector
