Industrial Motors

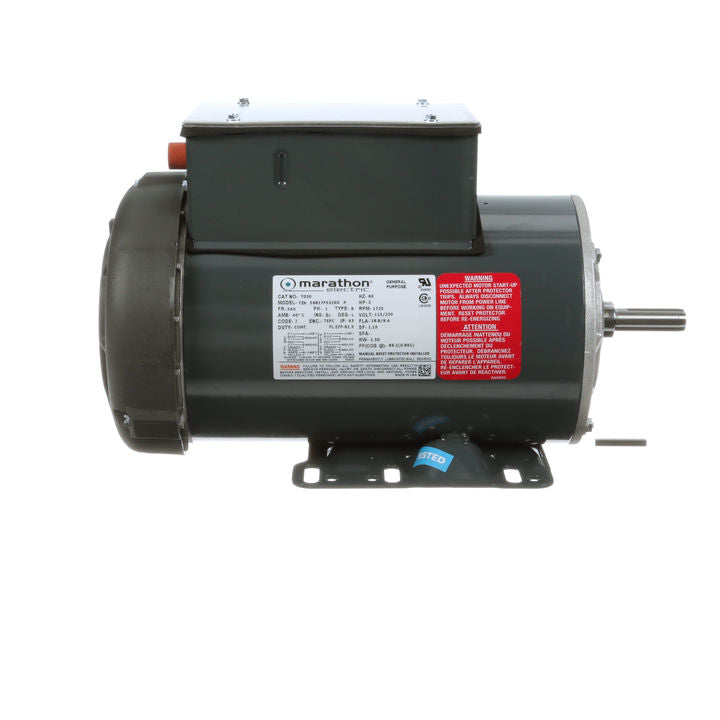

Marathon Electric T019, 2 Hp, 3600 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B34F5333.

Marathon Electric T019, 2 Hp, 3600 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B34F5333.

$1,391.00
$1,391.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,391.00 $1,321.45
Sale

T019, 2 Hp, 3600 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B34F5333.

Engineering Data

60 Hertz
HP 2
Voltage 115/230
kW 1.49
FL Amps 17.5/8.7
RPM 3600
FL Eff N/A % SF 1.15

Phase 1
Insulation Class B
Frame 56H
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting Rigid NEMA
Design L
Orientation HORIZONTAL
Starting Type CAP START CAP RUN
Assembly F3
KVA Code J
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Rotation SELECTIVE CCW
Opposite End Bearing Size N/A
CE N/A CSA Y
UL Recognized Construction
Thermal Protection Manual Protector

View full details
