Industrial Motors

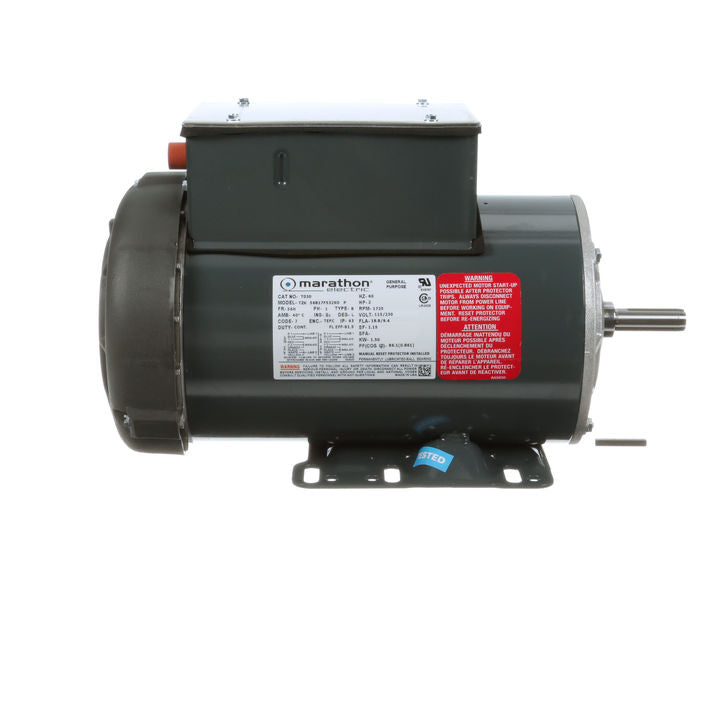

Marathon Electric T030, 2 Hp, 1800 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5329

Marathon Electric T030, 2 Hp, 1800 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5329

$1,026.00
$1,026.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,026.00 $974.70
Sale

T030, 2 Hp, 1800 Rpm, 56H FR, 115/230 V, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 56B17F5329

Engineering Data

60 Hertz
HP 2
Voltage 115/230
kW 1.5 FL Amps 18.8/9.4
RPM 1800
FL Eff N/A % SF 1.15

Phase 1
Insulation Class B
Frame 56H
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting Rigid
NEMA Design L
Orientation HORIZONTAL
Starting Type CAP START CAP RUN
Assembly F3
KVA Code J
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Rotation SELECTIVE CCW
Opposite End Bearing Size N/A
Weight 50 LB lbs
CE N/A CSA Y
UL Recognized Construction
Thermal Protection Manual Protector
