Industrial Motors

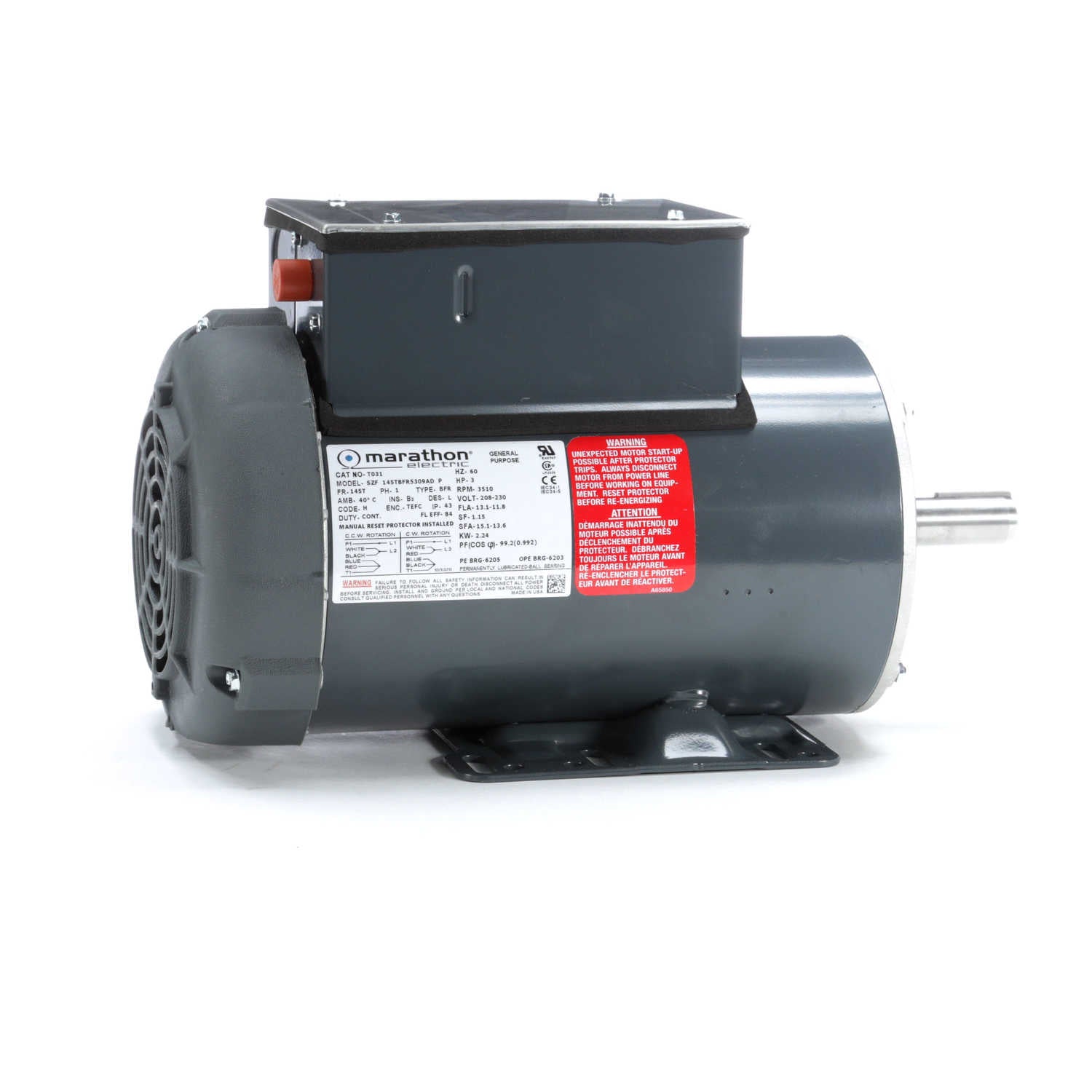

Marathon Electric T031, 3 Hp, 3600 Rpm, 145T FR, 208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 145TBFR5309

Marathon Electric T031, 3 Hp, 3600 Rpm, 145T FR, 208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 145TBFR5309

$1,758.00
$1,758.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,758.00 $1,670.10
Sale

T031, 3 Hp, 3600 Rpm, 145T FR, 208-230 Vac, 1 PH, Totally Enclosed, Rigid Base, Woodworking/Power Tool, Manual Overload, 145TBFR5309

Engineering Data

60 Hertz
HP 3
Voltage 208-230
kW 2.24
FL Amps 13.2-11.8
RPM
3600
FL Eff 84 %
SF 1.15

Phase 1
Insulation Class B
Frame 145T
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting Rigid
NEMA Design L
Orientation HORIZONTAL
Starting Type CAP START CAP RUN
Assembly F3
KVA Code H
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing
Size 205
Rotation SELECTIVE CCW
Opposite End Bearing Size 203
CE CSA Y
UL Recognized Construction
Thermal Protection Manual Protector
