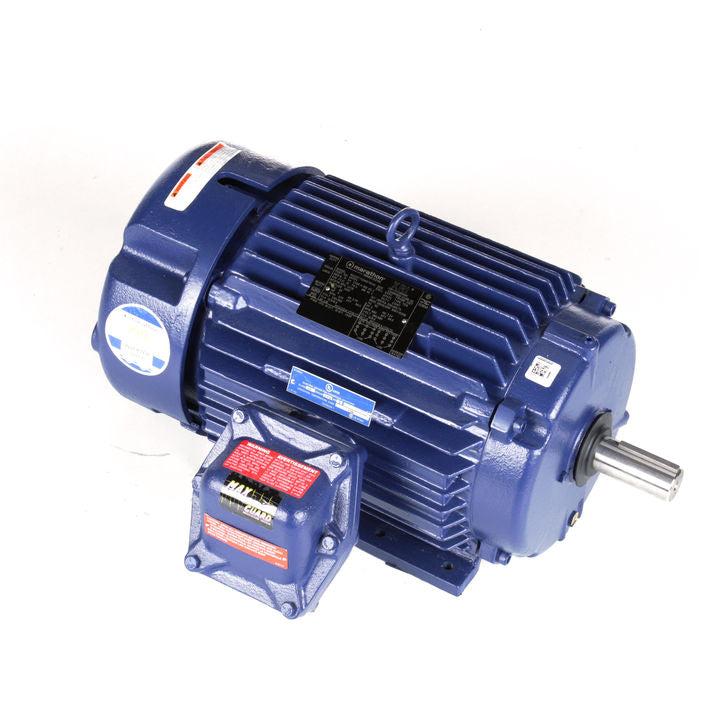

Marathon Electric U043B, 5 Hp, 1200 Rpm, 215T FR, 230/460 Vac, 3 PH, Rigid Base, Hazardous Duty, Explosion Proof, EPAct Efficiency, 215TTGND6576

U043B, 5 Hp, 1200 Rpm, 215T FR, 230/460 Vac, 3 PH, Rigid Base, Hazardous Duty, Explosion Proof, EPAct Efficiency, 215TTGND6576

Engineering Data

Output HP :5 HP
Output KW :3.7 kW
Frequency :60 Hz
Voltage :230/460 V
Current :13.8/6.9 A
Speed :1170 RPM
Service Factor :1.15
Phase :3
Efficiency :89.5 %
Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :H
Frame :215T
Enclosure :Explosion Proof Fan cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6307
Opp Drive End Bearing Size :6208
UL :UL Listed; also, UL Certified for Canada
CSA :N
CE :NIP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated
Starting Method :Line Or Inverter
Poles :6
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :22.63 in
Frame Length :12.12 in
Shaft Diameter :1.375 in
Shaft Extension :3.38 in
