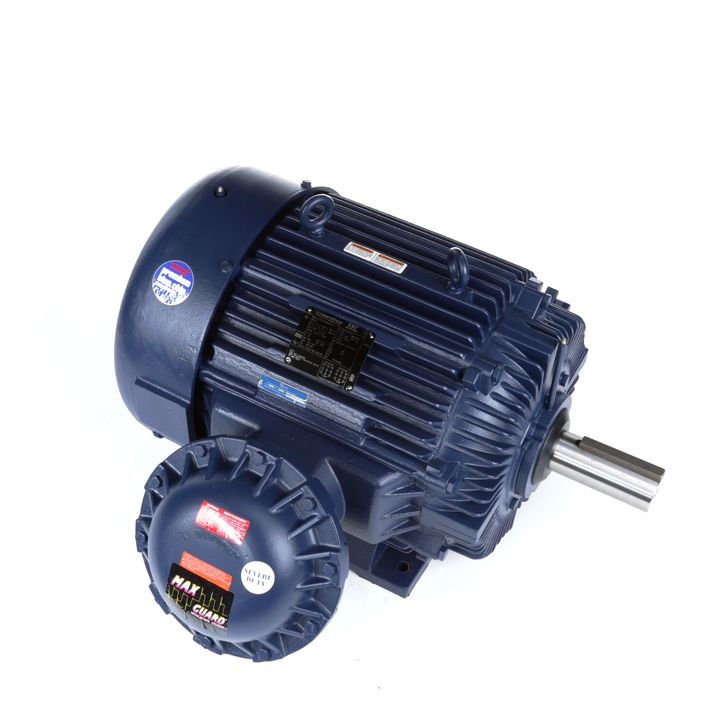

Marathon Electric U082A, 100 Hp, 1800 Rpm, 405TS FR, 208-230/460 Vac, 3 PH, EPFC, Rigid Base, Hazardous Duty Explosion Proof Motor, 405TSTGS16531.

U082A, 100 Hp, 1800 Rpm, 405TS FR, 208-230/460 Vac, 3 PH, EPFC, Rigid Base, Hazardous Duty Explosion Proof Motor, 405TSTGS16531.

Engineering Data

Output HP  100 Hp
Output KW  75 kW
Frequency  60 Hz
Voltage  230/460 V
Current  226/113 A
Speed  1780 rpm
Service Factor  1.15
Phases  3
Efficiency  95.4 %
Duty CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  F
Frame  405TS
Enclosure  EPFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6316
Opp Drive End Bearing Size  6313
UL  No
CSA  N
CE  N
IP Code  54

Technical Specifications

Electrical Type  SQ CAGE INV RATED
Starting Method  LINE OR INVERTER
Poles  4
Rotation  REV
Mounting  RIGID
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  CAST IRON
Shaft Type  TS
Overall Length  34.12 in
Frame Length  16.75 in
Shaft Diameter  2.13 in
Shaft Extension  4.5 in
Assembly/Box Mounting  F1 ONLY
