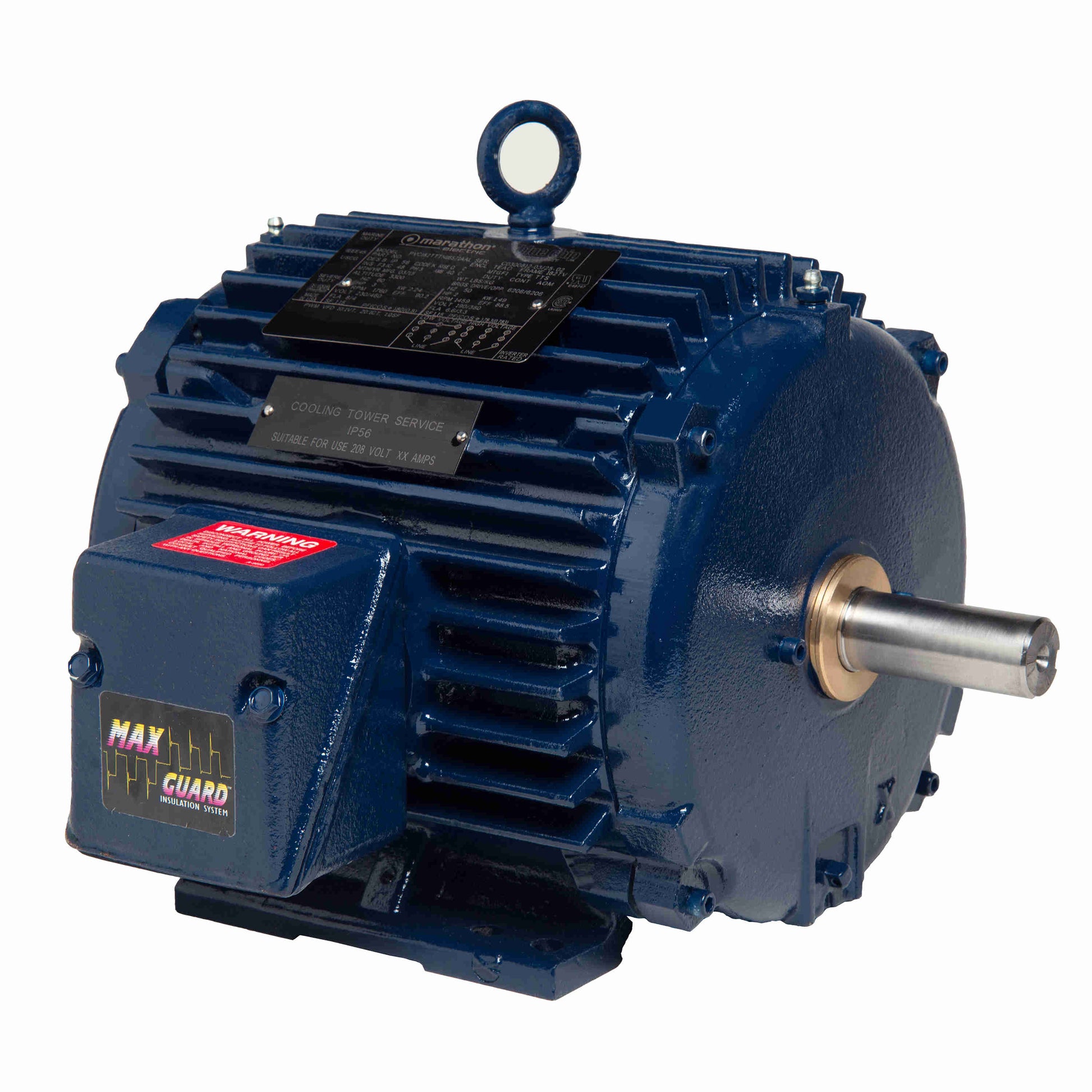

Marathon Electric U1867, 3 Hp, 1800 Rpm, 182TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 182TTTN16571.

U1867, 3 Hp, 1800 Rpm, 182TV, 230/460 V, 3 PH, TEAO, Rigid Base, Cooling Tower, Severe Duty Motors, 182TTTN16571.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 8.0/4.0 A
Speed : 1760 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 90.2 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 182TV
Enclosure : Totally Enclosed Air Over
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : N IP Code : 56
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 13.74 in
Frame Length : 8.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.85 in
Assembly/Box Mounting : F1/F2 Capable
