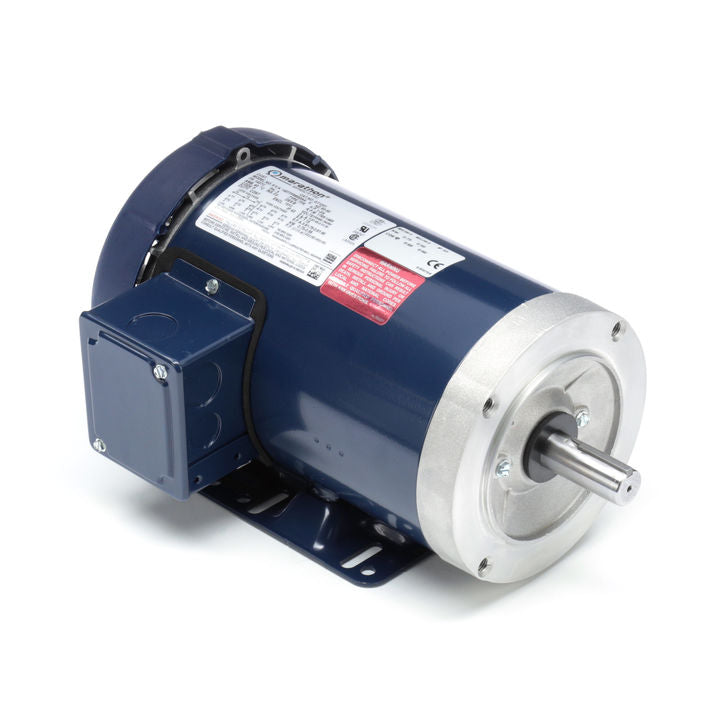

Marathon Electric U350A, 20 Hp, 3600 Rpm, 256JM FR, 200 V, 3 PH, Totally Enclosed, C-Face Footed, Close-Coupled Pump, JM, EPAct Motor, 256TTFL16006.

U350A, 20 Hp, 3600 Rpm, 256JM FR, 200 V, 3 PH, Totally Enclosed, C-Face Footed, Close-Coupled Pump, JM, EPAct Motor, 256TTFL16006.

Engineering Data

Output HP : 20 HP
Output KW : 14.9 kW
Frequency : 60 Hz
Voltage : 200 V
Current : 55.0 A
Speed : 3520 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 256JM
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6208
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Aluminum
Shaft Type : JM
Overall Length : 27.27 in
Frame Length : 13.75 in
Shaft Diameter : 1.250 in
Shaft Extension : 5.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856067333
Weight : 260.00 LB
