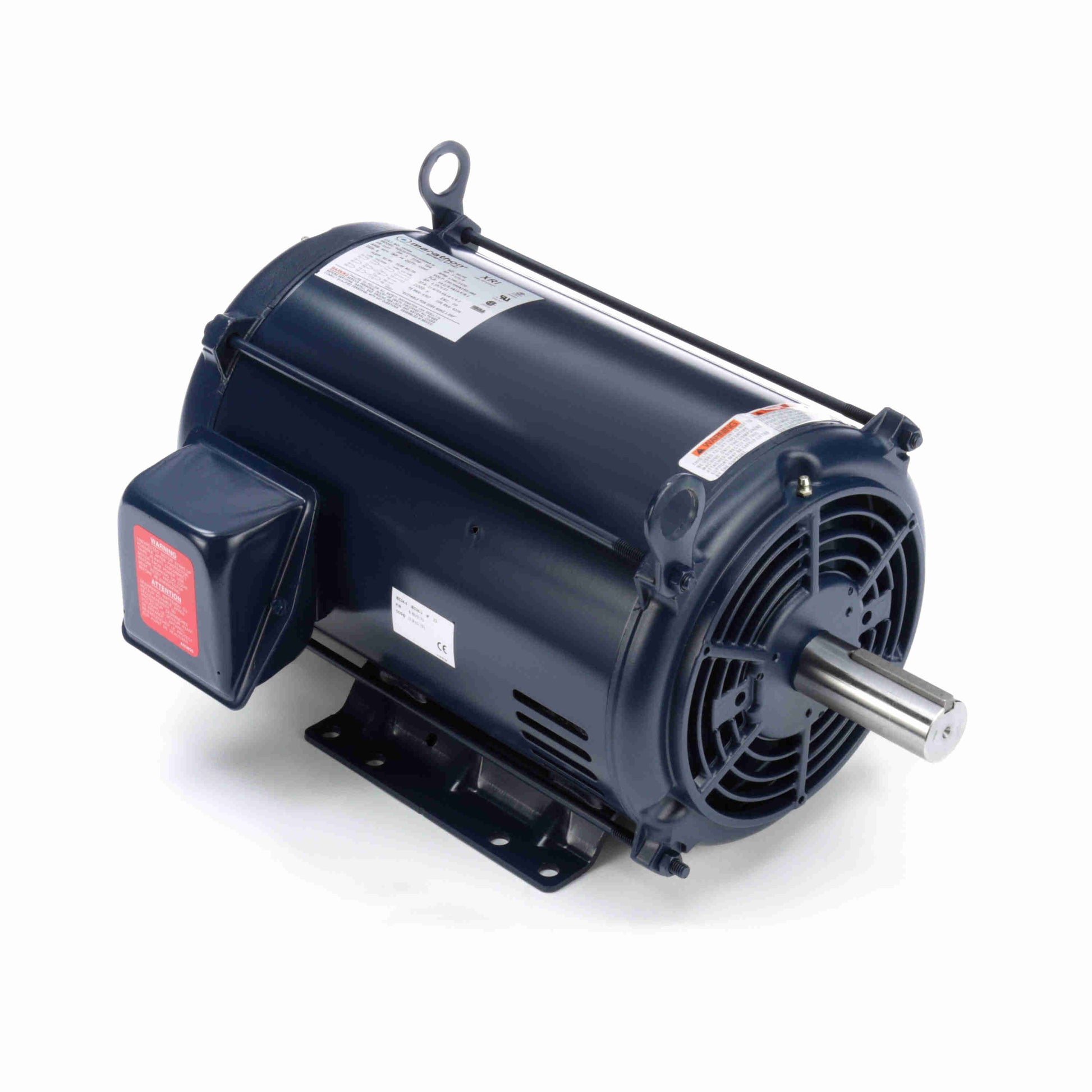

Marathon Electric U430B, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 V, 3 PH, Dripproof, Rigid Base, General Purpose, Auto over load, EPAct Efficient, 213TTDWD16060.

U430B, 7 1/2 Hp, 1800 Rpm, 213T FR, 230/460 V, 3 PH, Dripproof, Rigid Base, General Purpose, Auto over load, EPAct Efficient, 213TTDWD16060.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:20.0/10.0 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:77.1
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213T
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:1.56 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:18.04 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
