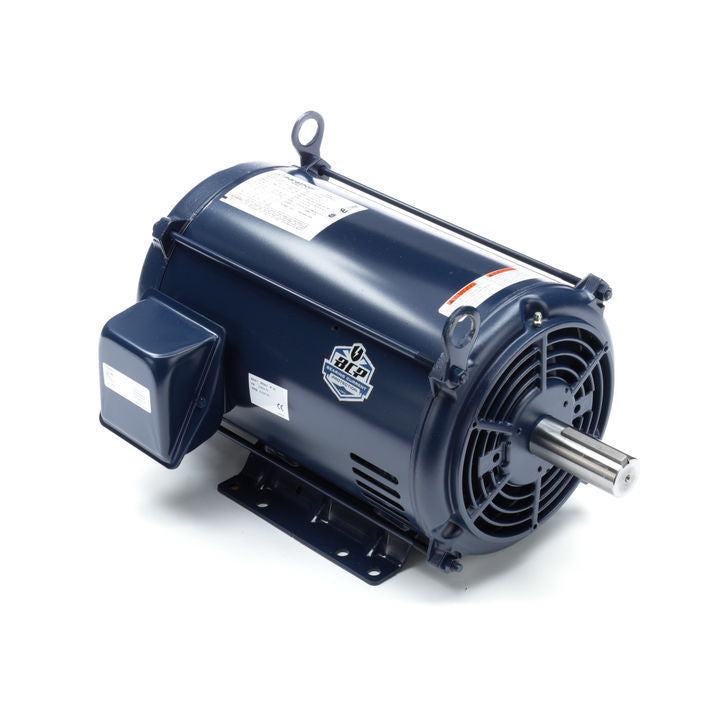

Marathon Electric U431A-P, 10 Hp, 1800 Rpm, 215T FR, 208-230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 215TTDW16073

U431A-P, 10 Hp, 1800 Rpm, 215T FR, 208-230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 215TTDW16073

Engineering Data

Output HP : 10 HP
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 25.0/12.5 A
Speed : 1760 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 91.7 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 215T
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 307
Opp Drive End Bearing Size : 206
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated
Starting Method : Line Or Inverter
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 22.15 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 Capable
UPC : 722856012975
Weight : 143.00 LB
