Industrial Motors

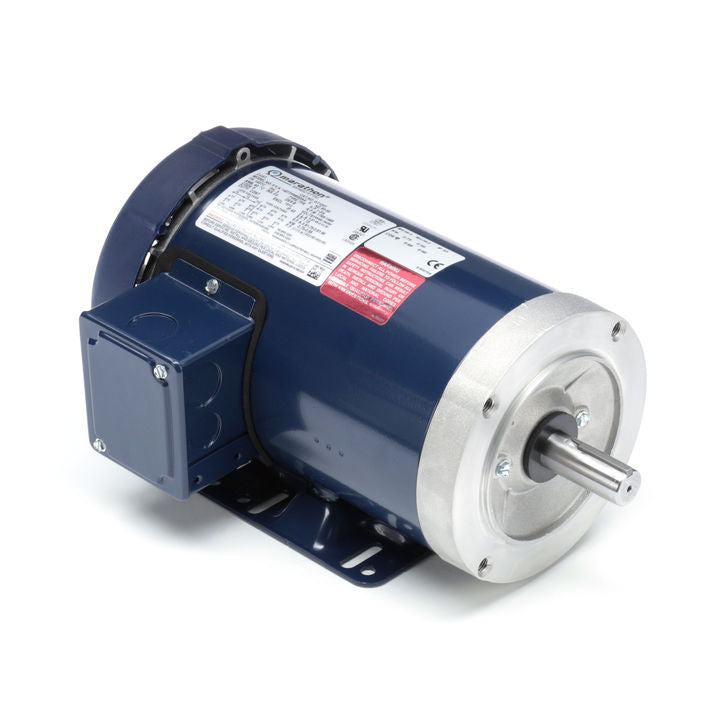

Marathon Electric U706A, 2 Hp, 1800 Rpm, 145TC FR, 200 V, 3 PH, TEFC, C-Face Footed, General Purpose, Epact Efficiency.

Marathon Electric U706A, 2 Hp, 1800 Rpm, 145TC FR, 200 V, 3 PH, TEFC, C-Face Footed, General Purpose, Epact Efficiency.

$1,139.00
$1,139.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,139.00 $1,082.05
Sale

U706A, 2 Hp, 1800 Rpm, 145TC FR, 200 V, 3 PH, TEFC, C-Face Footed, General Purpose, Epact Efficiency.

Engineering Data

60 Hertz
HP 2 Voltage 200
kW 1.49 FL Amps 6.45
RPM 1800
FL Eff 84 % SF 1.15

Phase 3
Insulation Class F
Frame 145TC
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face Rigid NEMA
Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 ONLY
KVA Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 42 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection NOT

Brake Information
Make STEARNS Series 56,000
Provisions PROVISIONS FOR KIT Torque 10
