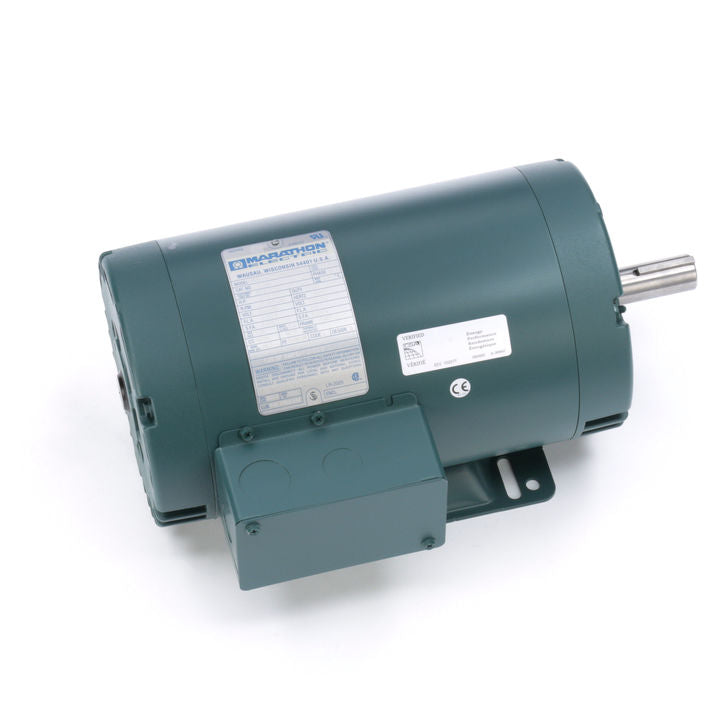

U760, 2 Hp, 1800 Rpm, 145T FR, 208-230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 145TTDR6029

U760, 2 Hp, 1800 Rpm, 145T FR, 208-230/460 Vac, 3 PH, DP, Rigid Base, General Purpose Motor, 145TTDR6029 Engineering Data Output HP:2 Hp Output KW:1.5 kW Frequency:60 Hz Voltage:230/460 V Current:5.8/2.9 A Speed:1745 rpm Service Factor:1.15 Phase:3 Efficiency:86.5 % Power Factor:75.6 Duty:Continuous Insulation Class:F Design Code:B KVA Code:L Frame:145T Enclosure:Drip Proof Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6205 Opp Drive End Bearing Size:6203 UL:Recognized CSA:Y CE:YIP Code:22 Technical Specifications Electrical Type:Squirrel Cage Inverter Rated Starting Method:Line Or Inverter Poles:4 Rotation:Reversible Resistance Main:1.5 Ohms Mounting:Rigid Base Motor Orientation:Horizontal Drive End Bearing:Ball Opp Drive End Bearing:Ball Frame Material:Rolled Steel Shaft Type:T Overall Length:13.62 in Frame Length:8.50 in Shaft Diameter:0.875 in Shaft Extension:2.37 in Assembly/Box Mounting:F1 ONLY
