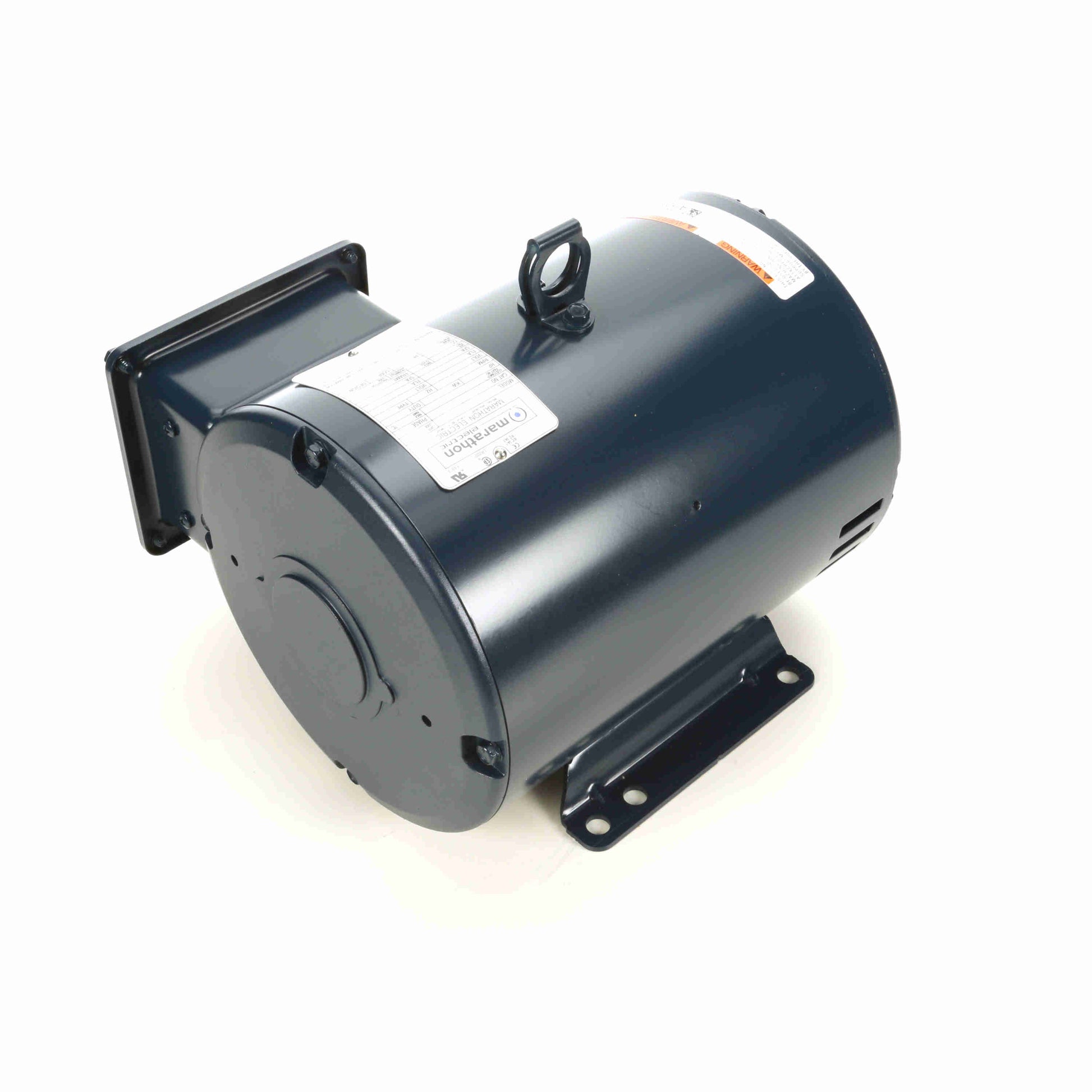

Marathon Electric U917, 5 Hp, 1800 Rpm, 184T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 184TTDW16041.

U917, 5 Hp, 1800 Rpm, 184T FR, 575 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, 184TTDW16041.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:575 V
Current:5.1 A
Speed:1755 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184T
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:2.72 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:14.19 in
Frame Length:10.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.81 in
Assembly/Box Mounting:F1/F2 Capable
