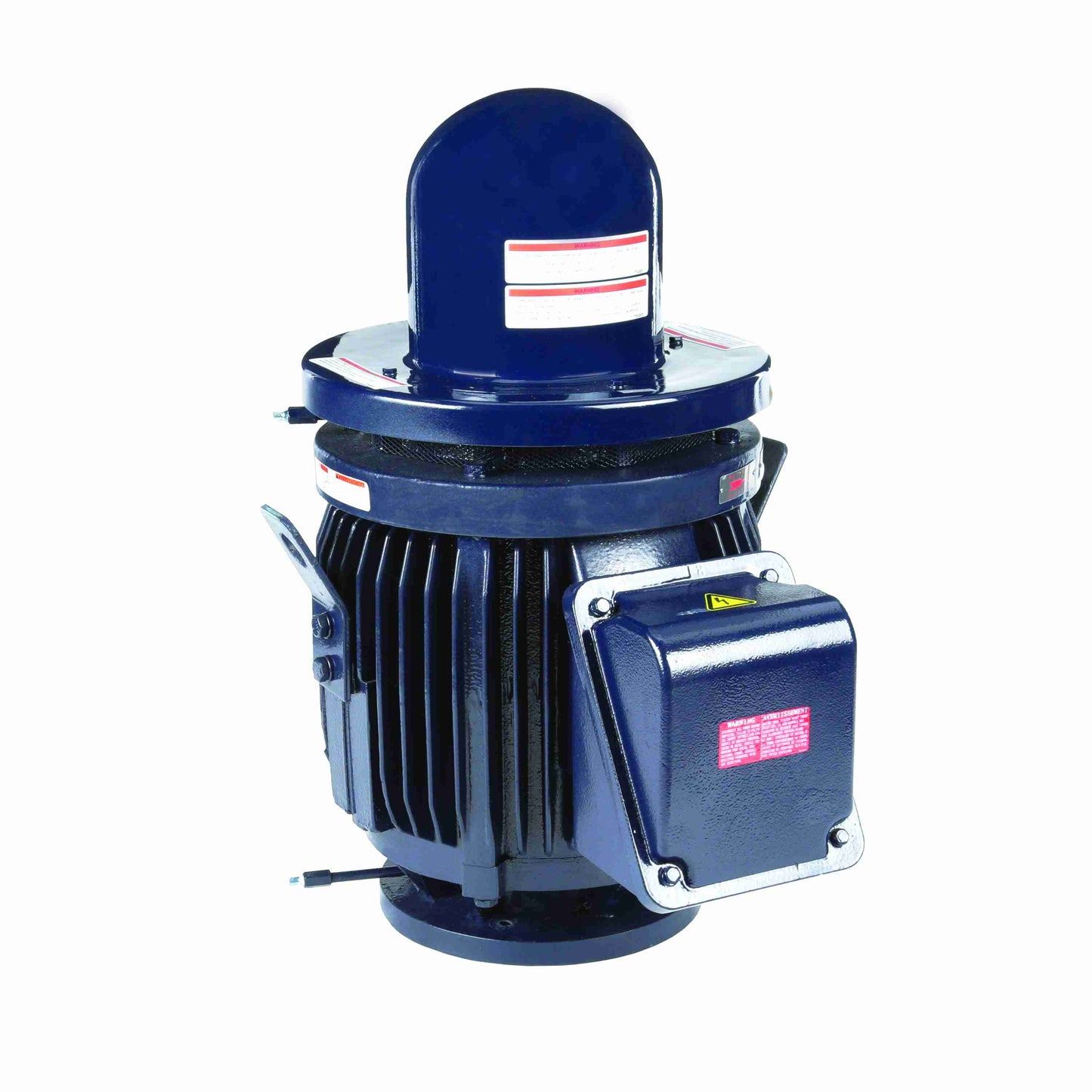

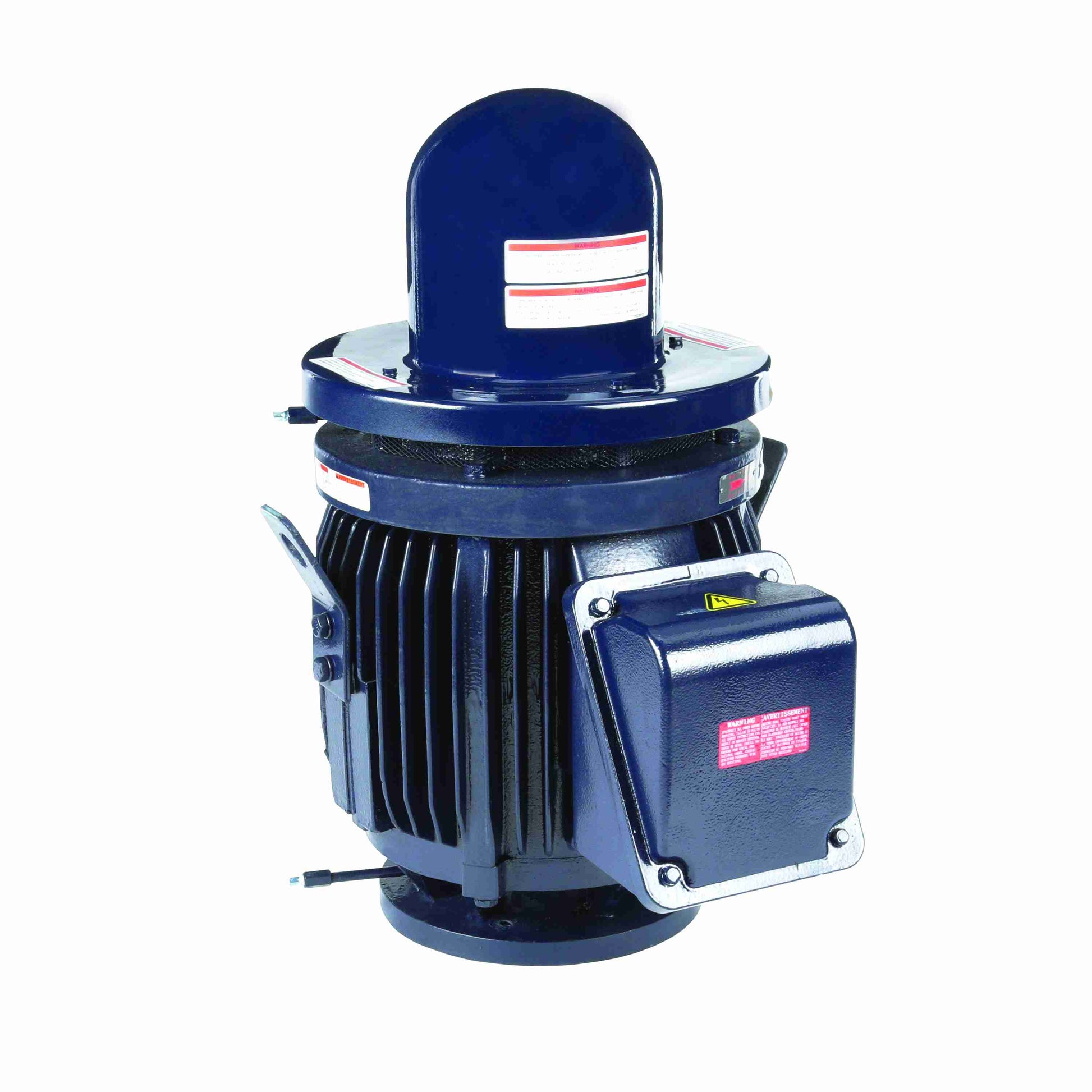

Marathon Electric V116A, 20 Hp, 1800 Rpm, 256TPV FR, 230/460 Vac, 3 PH, Wheather Protected, Inveter Duty, 256VTDC6026.

V116A, 20 Hp, 1800 Rpm, 256TPV FR, 230/460 Vac, 3 PH, Wheather Protected, Inveter Duty, 256VTDC6026.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:50.0/24.9 A
Speed:1765 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:81
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:256TPV
Enclosure:Weather Protected 1
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:7311B
UL:Recognized
CSA:Y
CE:YIP Code:23
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter
Poles:4
Rotation:Counterclockwise Rotation, Reversible without Non-Reversible Ratchet
Resistance Main:.546 Ohms
Mounting:Round
Motor Orientation:Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Single Angular Contact
Frame Material:Cast Iron
Shaft Type:TP
Overall Length:27.85 in
Shaft Diameter:1.375 in
Shaft Extension:0.12 in
Assembly/Box Mounting:F1/F2 CAPABLE
