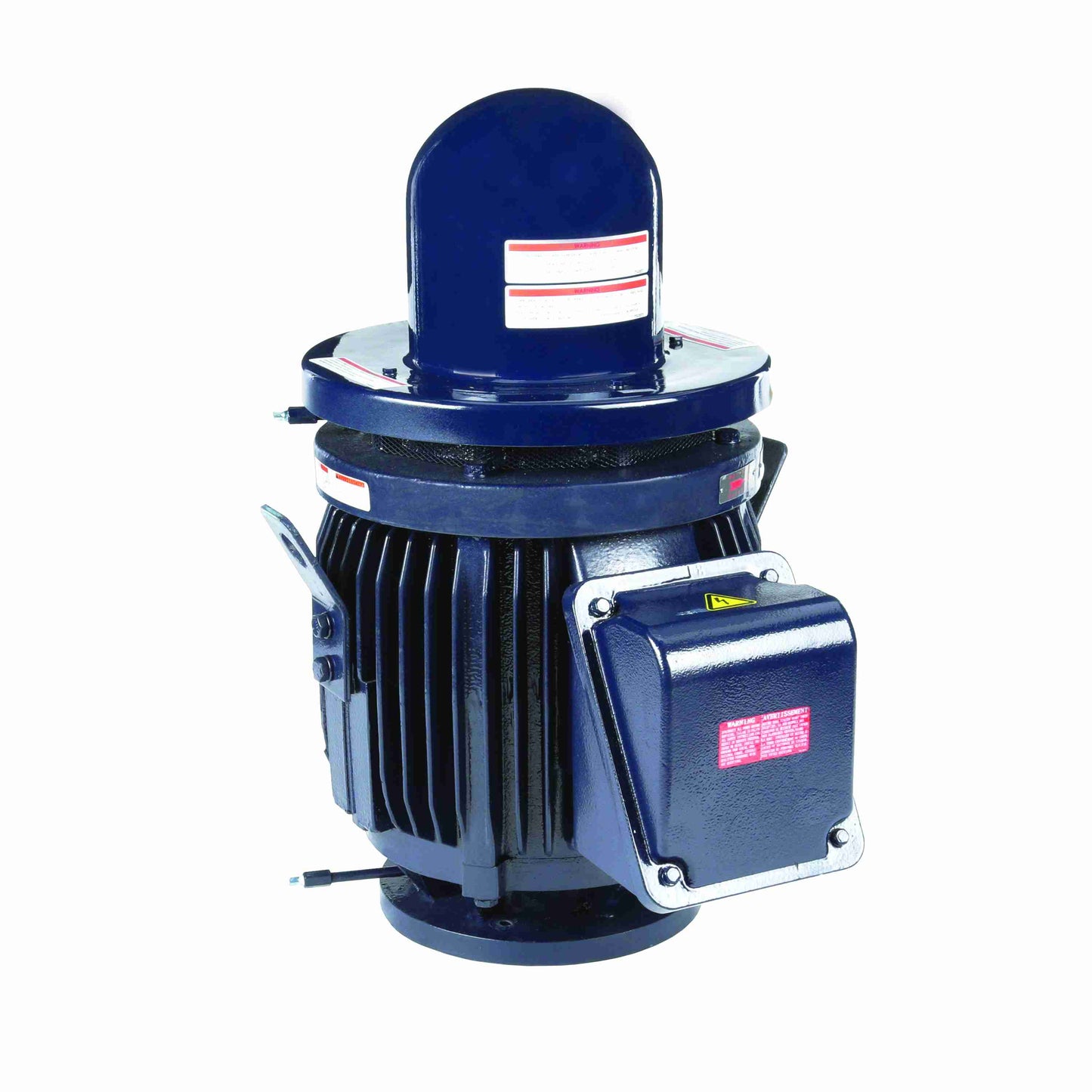

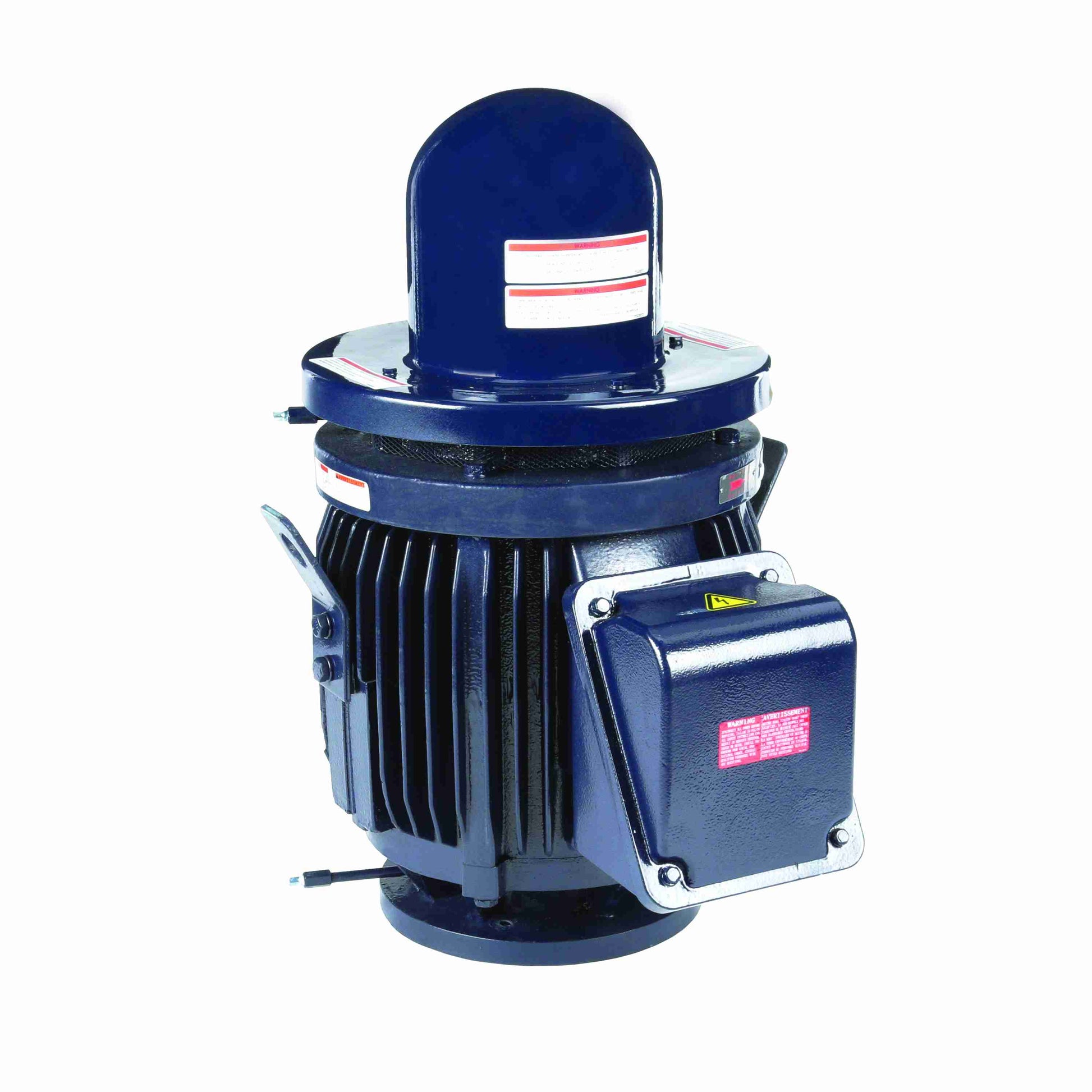

Marathon Electric V133A, 75 Hp, 3600 Rpm, 364TPV FR, 230/460 Vac, 3 PH, Wheather Protected, Inveter Duty, 364VTDC6001.

V133A, 75 Hp, 3600 Rpm, 364TPV FR, 230/460 Vac, 3 PH, Wheather Protected, Inveter Duty, 364VTDC6001.

Engineering Data

Output HP:75 Hp
Output KW:56.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:178.0/89.0 A
Speed:3560 rpm
Service Factor:1.15
Phase:3
Efficiency:93.6 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:364TPV
Enclosure:Weather Protected 1
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6313
Opp Drive End Bearing Size:7219B
UL:Recognized
CSA:Y
CE:YIP Code:23
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter
Poles:2
Rotation:Counterclockwise Rotation, Reversible without Non-Reversible Ratchet
Mounting:Round
Motor Orientation:Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Single Angular Contact
Frame Material:Cast Iron
Shaft Type:TP
Overall Length:35.49 in
Shaft Diameter:1.875 in
Shaft Extension:0.31 in
Assembly/Box Mounting:F1/F2 CAPABLE
