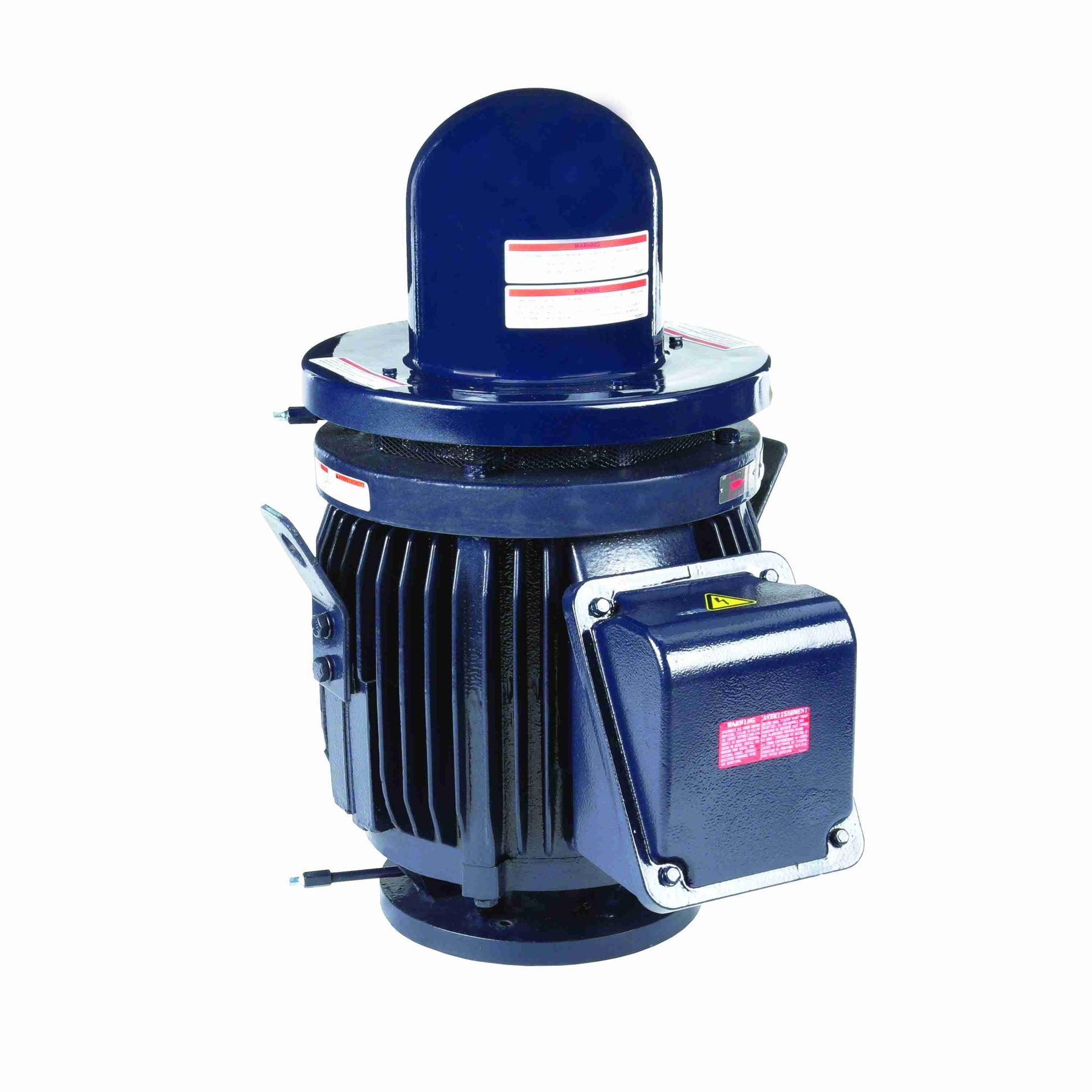

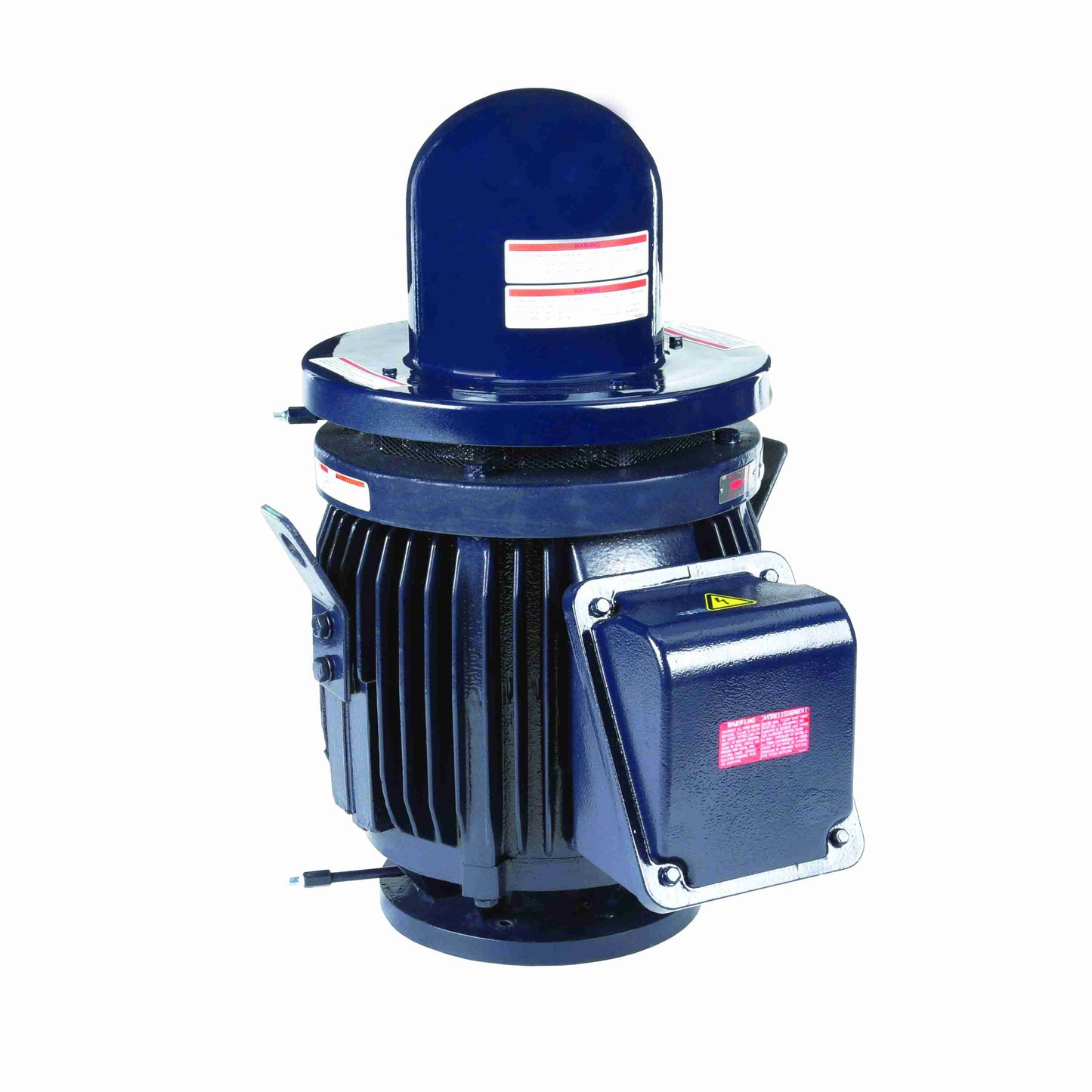

Marathon Electric V143A, 150 Hp, 1800 Rpm, 444TPV FR, 460 Vac, 3 PH, Wheather Protected, Inveter Duty, 444VTDC6026.

V143A, 150 Hp, 1800 Rpm, 444TPV FR, 460 Vac, 3 PH, Wheather Protected, Inveter Duty, 444VTDC6026.

Engineering Data

Output HP:150 Hp
Output KW:112.0 kW
Frequency:60/50 Hz
Voltage:460 V
Current:174.0 A
Speed:1785 rpm
Service Factor:1.15
Phase:3
Efficiency:96 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:444TPV
Enclosure:Weather Protected 1
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6314
Opp Drive End Bearing Size:7222DT
UL:Recognized
CSA:Y
CE:YIP Code:23
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Part Wdg Start Or Inverter
Poles:4
Rotation:Counterclockwise Rotation, Reversible without Non-Reversible Ratchet
Mounting:Round
Motor Orientation:Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Duplex Tandem Angular Contact
Frame Material:Cast Iron
Shaft Type:TP
Overall Length:49.96 in
Shaft Diameter:2.000 in
Shaft Extension:0.27 in
Assembly/Box Mounting:F1/F2 CAPABLE
