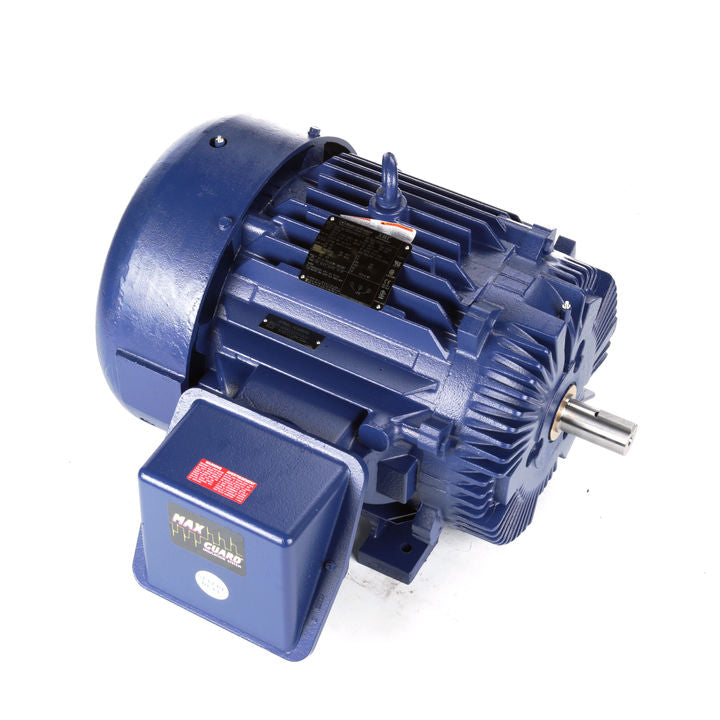

Marathon Electric W584, 60 Hp, 3600 Rpm, 364TS FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 364TSHFS9001

W584, 60 Hp, 3600 Rpm, 364TS FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 364TSHFS9001

Engineering Data

Output HP :60 HP
Output KW :45.0 kW
Frequency :60 Hz
Voltage :460 V
Current :67.0 A
Speed :3555 RPM
Service Factor :1.15
Phase :3
Efficiency :94.5 %
Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :G
Frame :364TS
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6312
Opp Drive End Bearing Size :6312
UL :Recognized
CSA :Y
CE :YIP Code :56
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated
Starting Method :Line Or Inverter
Poles :2
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :TS
Overall Length :29.38 in
Frame Length :13.50 in
Shaft Diameter :1.875 in
Shaft Extension :4 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856021588
