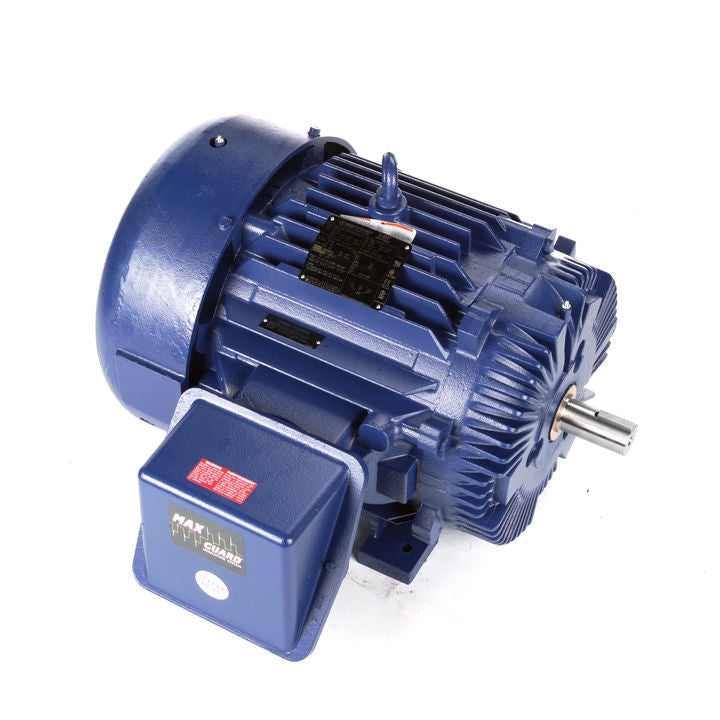

Marathon Electric W584A, 60 Hp, 3600 Rpm, 364TS FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 364TSHFCD9001.

W584A, 60 Hp, 3600 Rpm, 364TS FR, 460 Vac, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 364TSHFCD9001.

Engineering Data

Output HP:60 Hp
Output KW:45.0 kW
Voltage:460 V
Current:67.5 A
Speed:3568 rpm
Service Factor:1.15
Phase:3
Efficiency:93.6 %
Power Factor:89
Duty:Continuous
Insulation Class:H
Design Code:B
KVA Code:G
Frame:364TS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6313
Opp Drive End Bearing Size:6213
UL:Listed
CSA:Y
CE:YIP Code:56
Hazardous Location:DIVISION 2 T2B
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.1034 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Shaft Diameter:1.875 in
Assembly/Box Mounting:F1/F2 CAPABLE
