Industrial Motors

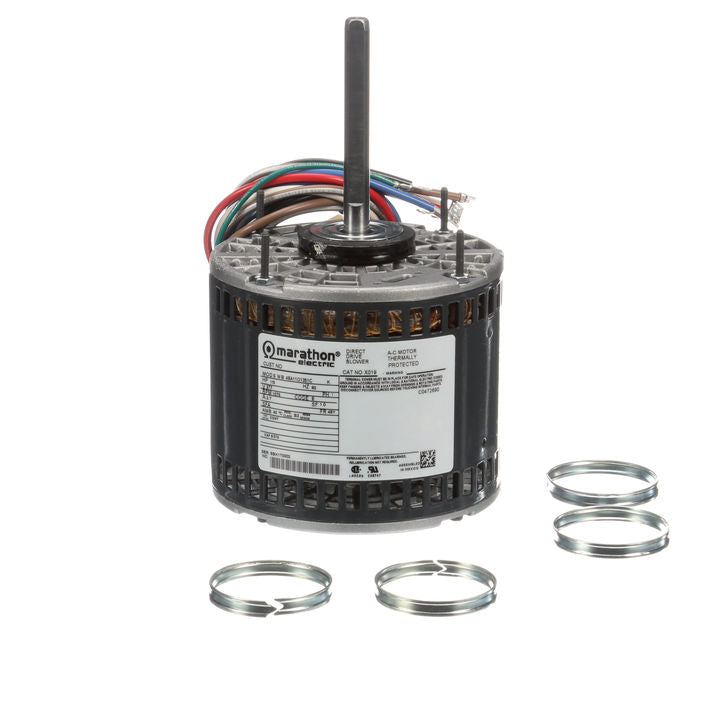

Marathon Electric X019, 1/3 Hp, 1075/3 Rpm, 48Y FR, 277 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1351

Marathon Electric X019, 1/3 Hp, 1075/3 Rpm, 48Y FR, 277 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1351

$449.00
$449.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$449.00 $426.55
Sale

X019, 1/3 Hp, 1075/3 Rpm, 48Y FR, 277 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1351.

Engineering Data

60 Hertz
HP 1/3
Voltage 277
kW 0.25
FL Amps 2.7
RPM 1075
FL Eff N/A % SF NONE

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUSAOM
Enclosure OPAO
Ambient 40
Mounting Resilient Rings - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 3 SPEED
Assembly F1 ONLY
KVA Code E
Drive End Bearing BALL
IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 15 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
