Industrial Motors

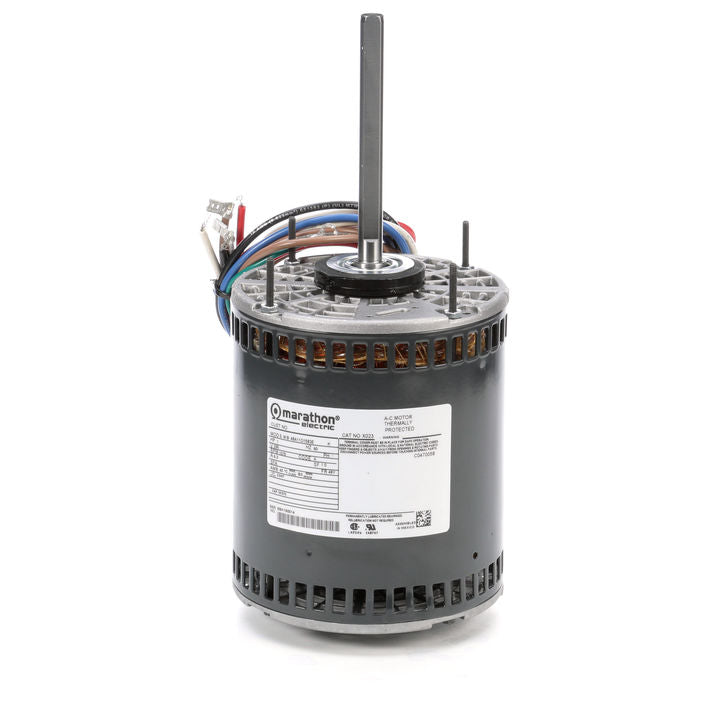

Marathon Electric X023, 1 Hp, 1075/3 Rpm, 48Y FR, 230 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1583

Marathon Electric X023, 1 Hp, 1075/3 Rpm, 48Y FR, 230 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1583

$584.00
$584.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$584.00 $554.80
Sale

X023, 1 Hp, 1075/3 Rpm, 48Y FR, 230 Vac, 1 PH, Open Air Over, Resilient Ring, Thru-Bolt Mount, Fan Blower-Direct Drive, PSC, 48A11O1583.

Engineering Data

60 Hertz
HP 1
Voltage 230
kW 0.75
FL Amps 5.3
RPM 1075
FL Eff N/A % SF 1.0

Phase 1
Insulation Class B
Frame 48Y
Duty CONT. AOM
Enclosure OPAO
Ambient 40
Mounting Resilient Rings - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 3 SPEED
Assembly F1 ONLY KVA Code A
Drive End Bearing BALL IP Code 01
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
Weight 24 LB lbs
CE N/A CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
